Phoenix Gold ZXM600.3 Amp ZX Series Class D 3 Channel Mini Amplifier

ZXM600.3 – 3 channel MINI Amplifier

Small in size big in power

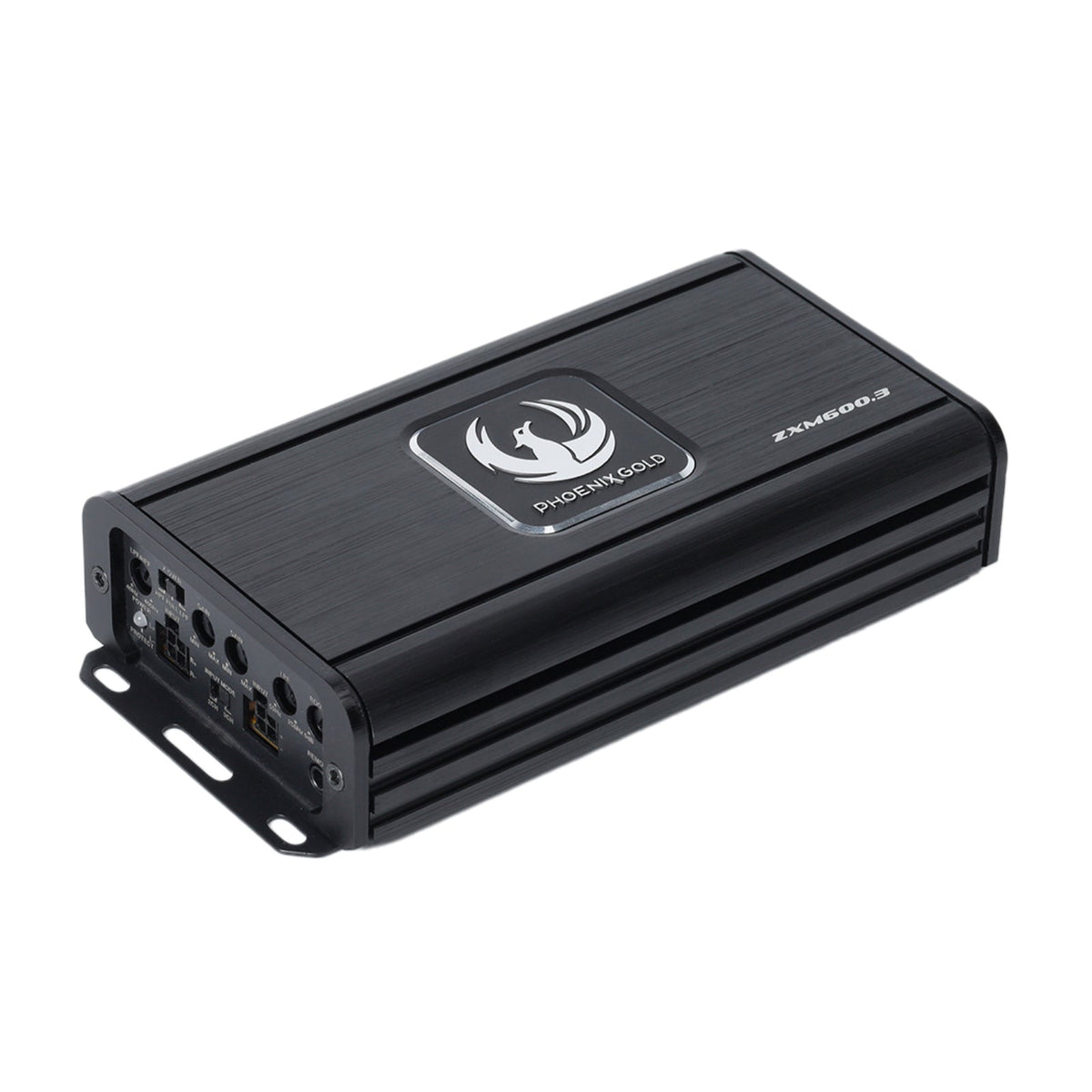

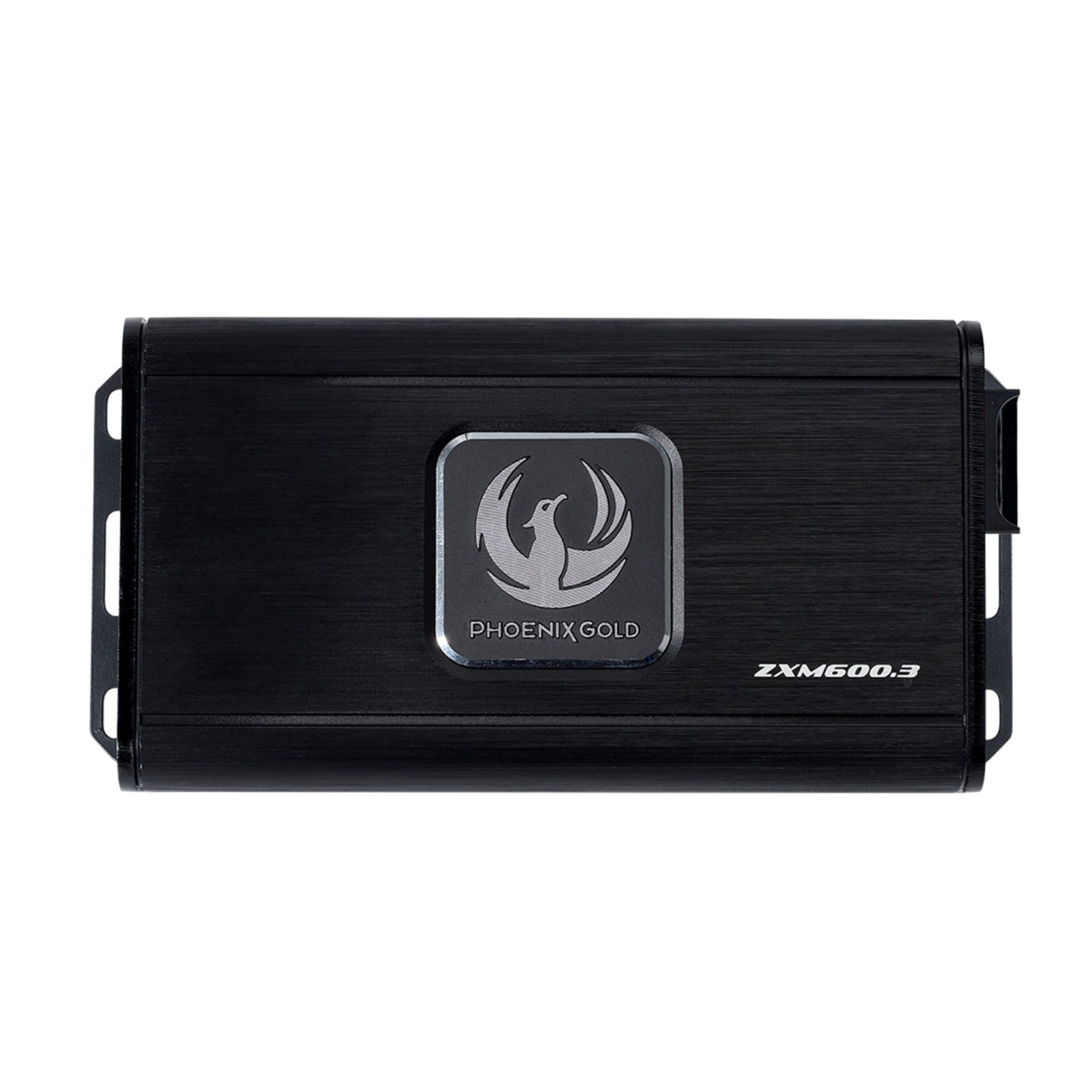

The ZXM600.3 is an impressive Class-D 3-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions.

Introducing the ZXM600.3, the latest evolution in our acclaimed ZXM range. Designed with cutting-edge technology, this compact powerhouse delivers over 600W RMS, all within a chassis that fits comfortably in your hand. Whether you’re upgrading your car audio system or building a new setup from scratch, the ZXM600.3 provides the perfect blend of size, power, and versatility.

Key Features

• Massive Power, Minimal Footprint: Despite its compact size (165x83x35mm), the ZXM600.3 outputs a stunning 600W RMS, making it a perfect solution for those seeking powerful sound without sacrificing space.
• Flexible Channel Configuration: The amplifier offers both 2-channel and 3-channel outputs, allowing you to drive a powerful front system and a subwoofer with ease. At 14.4V with less than 1% T.H.D, it delivers:
• 2x75W + 230W @ 4-Ohm
• 2x125W + 350W @ 2-Ohm

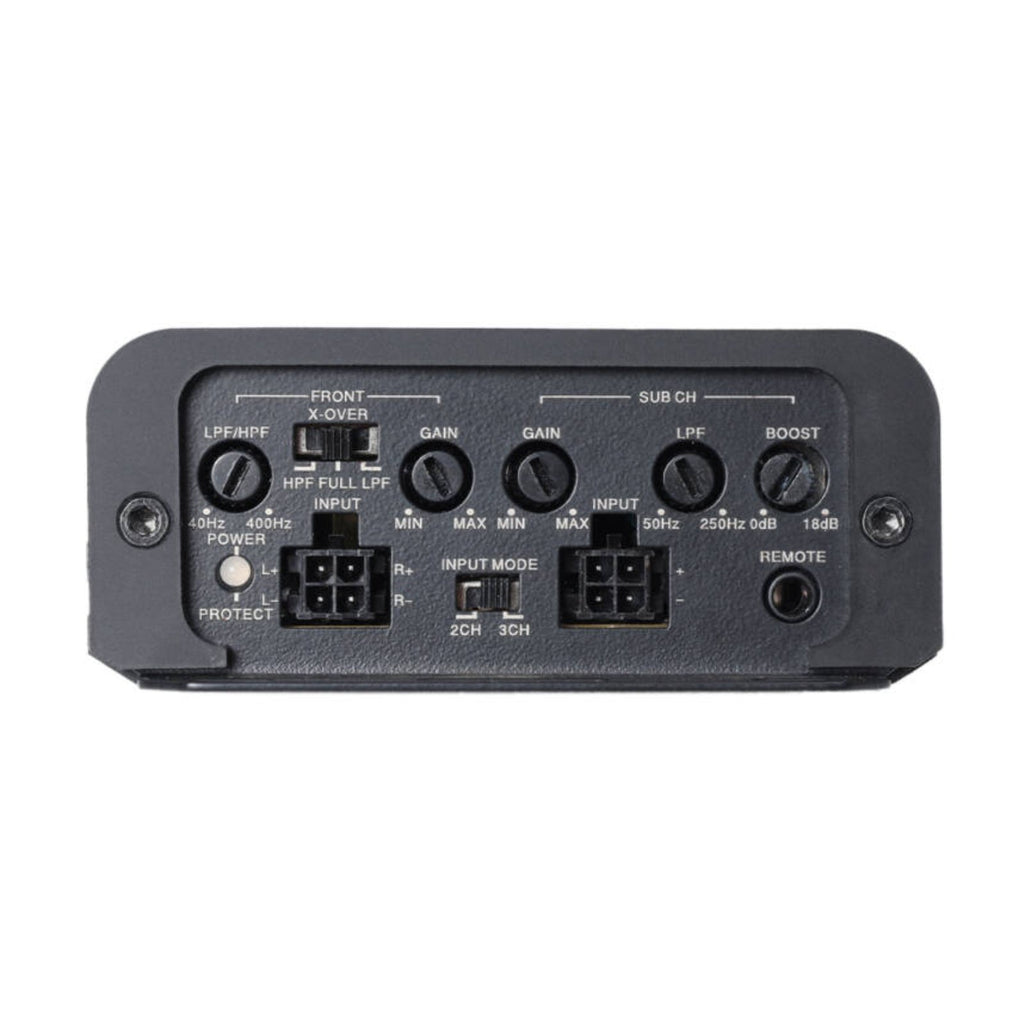

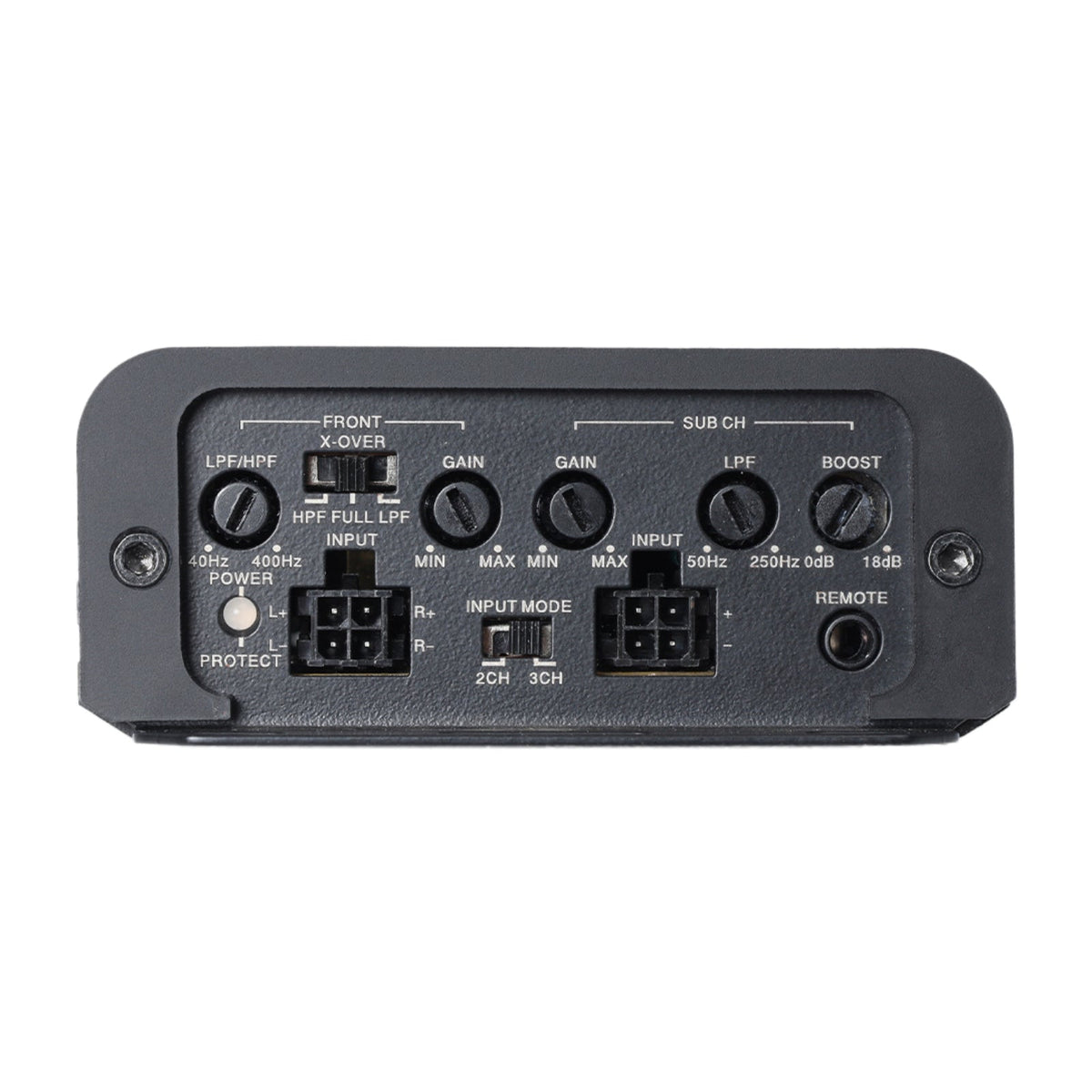

• Advanced Filters: Equipped with high-pass (HP) and low-pass (LP) filters for the 2 channels (48 – 480Hz, 12dB) and LP filters for the sub channel (24dB), ensuring precise audio control and superior sound quality.
• Versatile Input Options: The ZXM600.3 supports both high-level and low-level inputs, accommodating various audio sources and installation preferences.

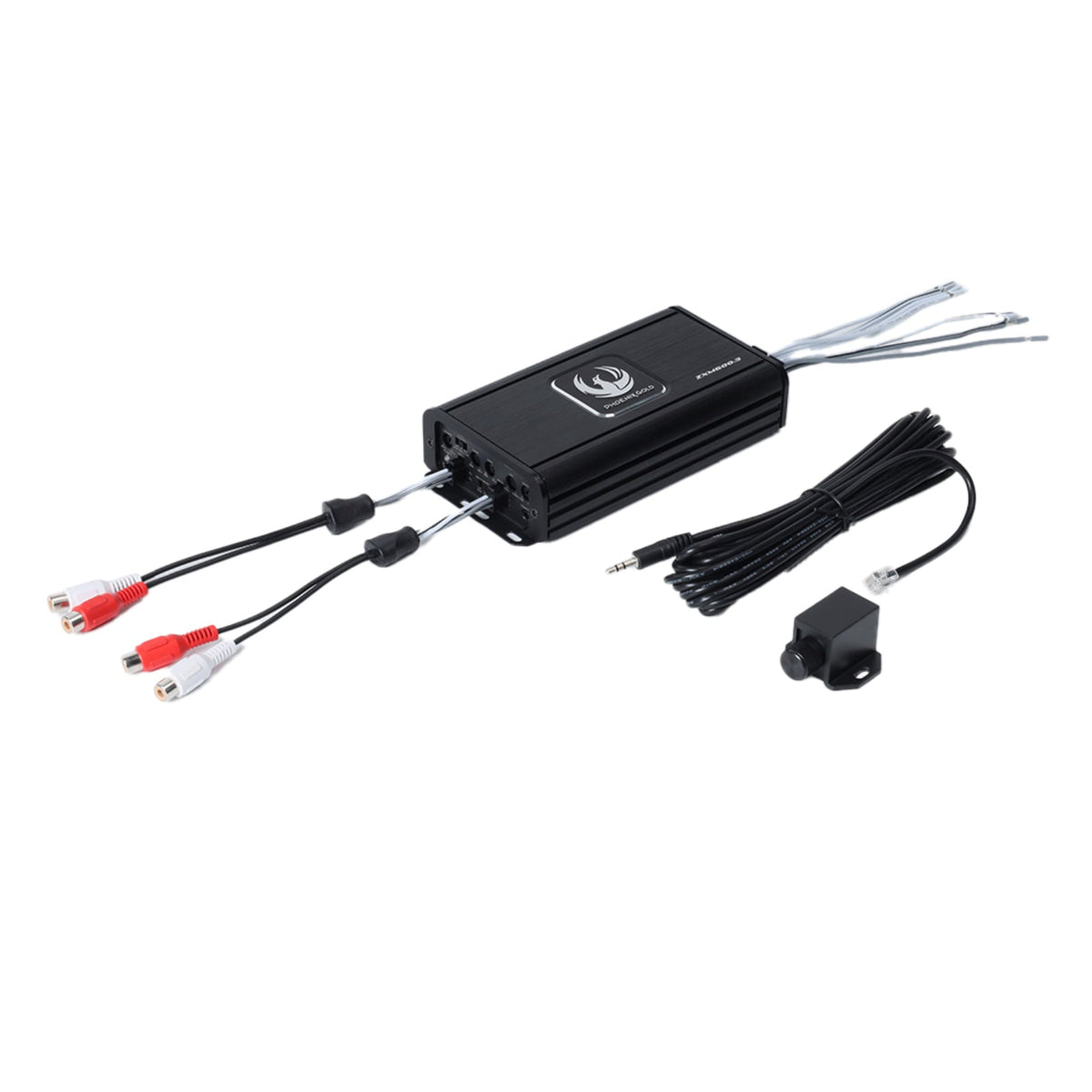

• Bass Boost & Remote Control: Tailor your audio experience with a 0-18dB bass boost and fine-tune the sound directly from the included remote gain controller.
• Superior Sound Quality: With an input sensitivity range of 0.2V-10.0V, a signal-to-noise ratio of over 90dB, and total harmonic distortion of less than 1.0%, the ZXM600.3 ensures crystal-clear audio reproduction.

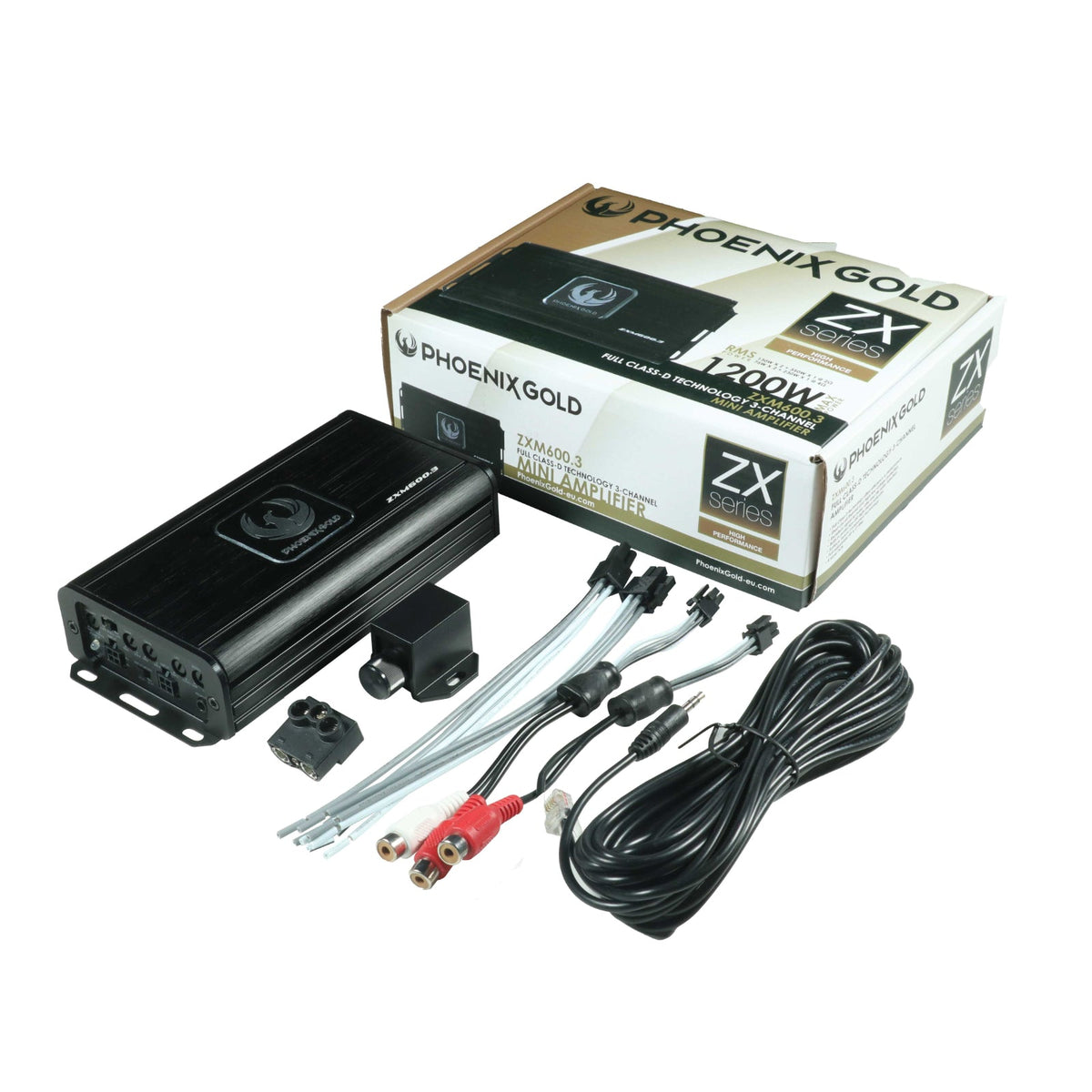

• Quick and Easy Installation: The newly designed quick connector for power, ground and remote streamlines the installation process, saving you time and effort.

A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
