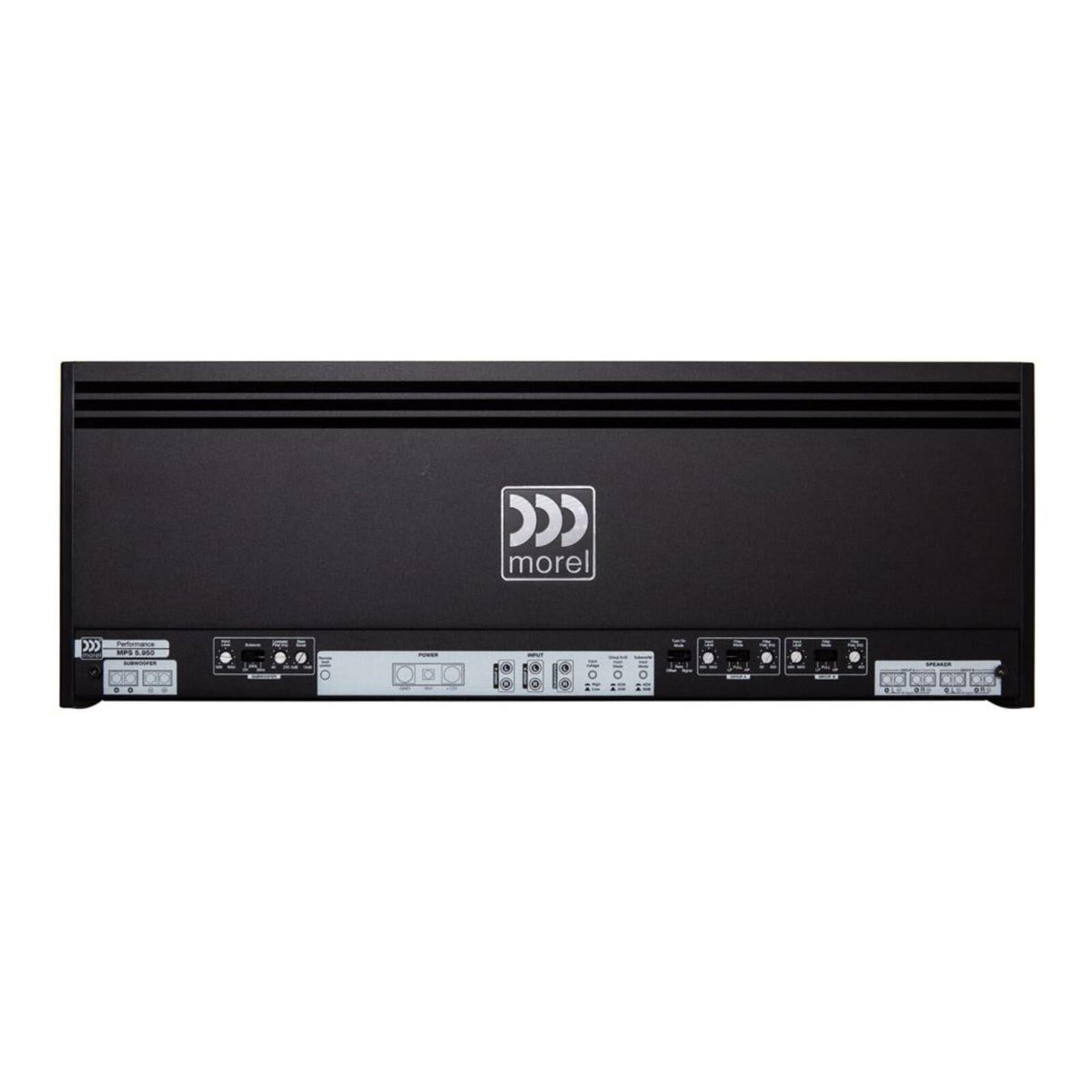

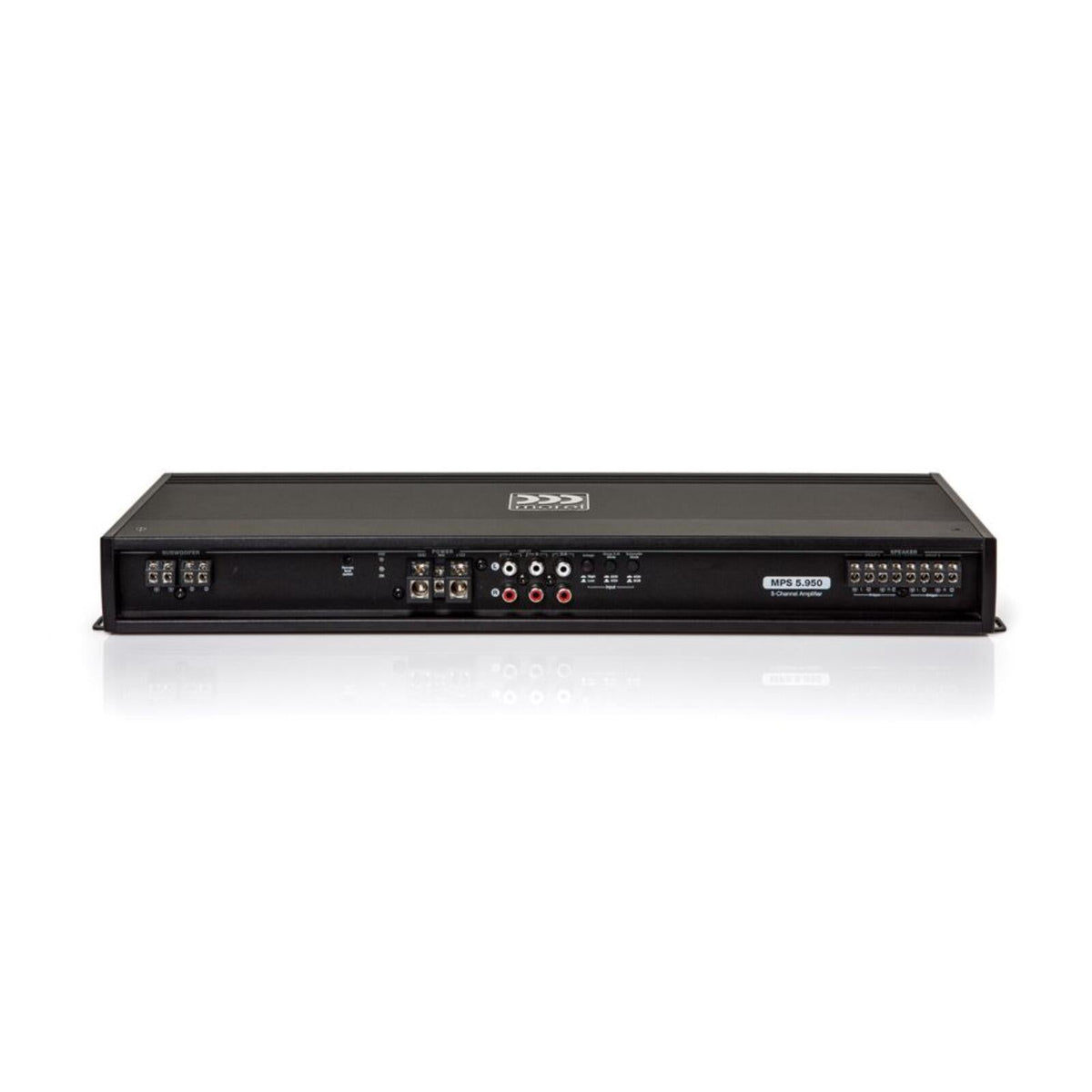

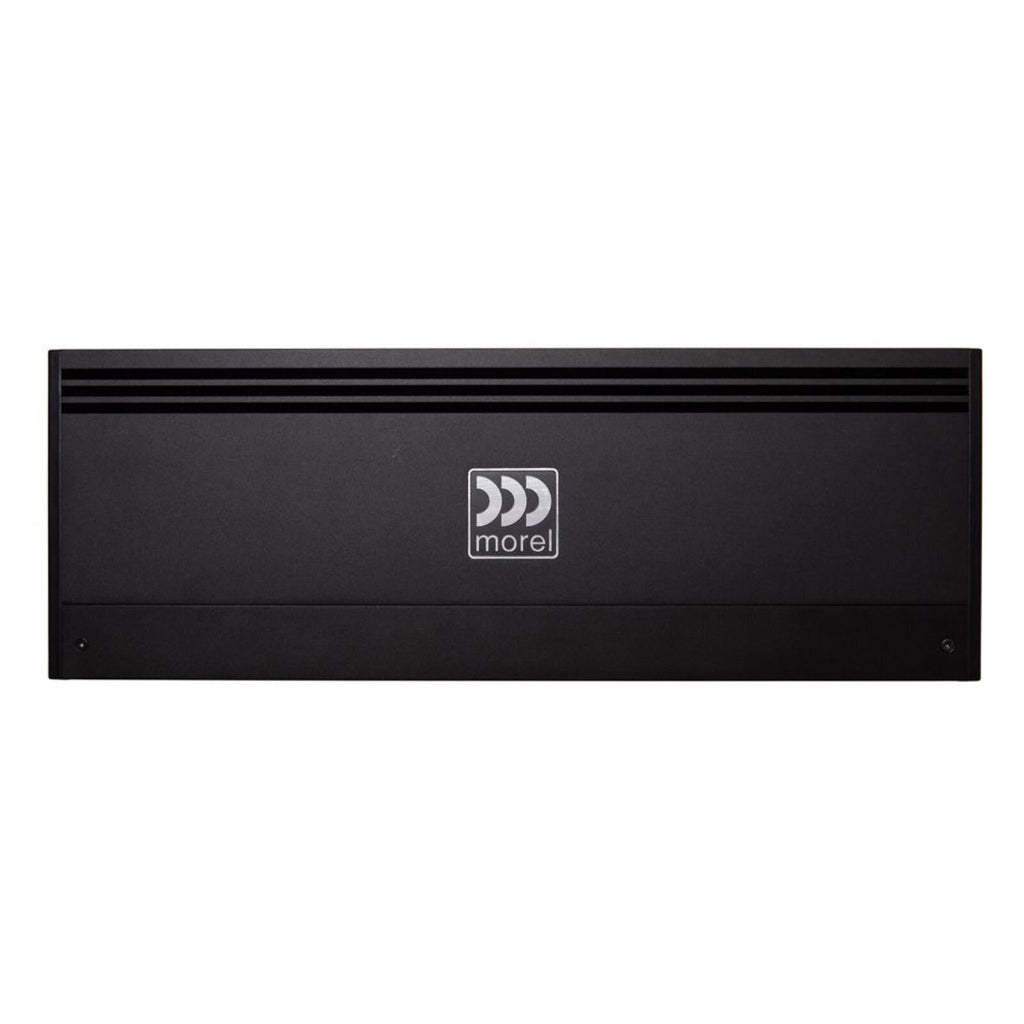

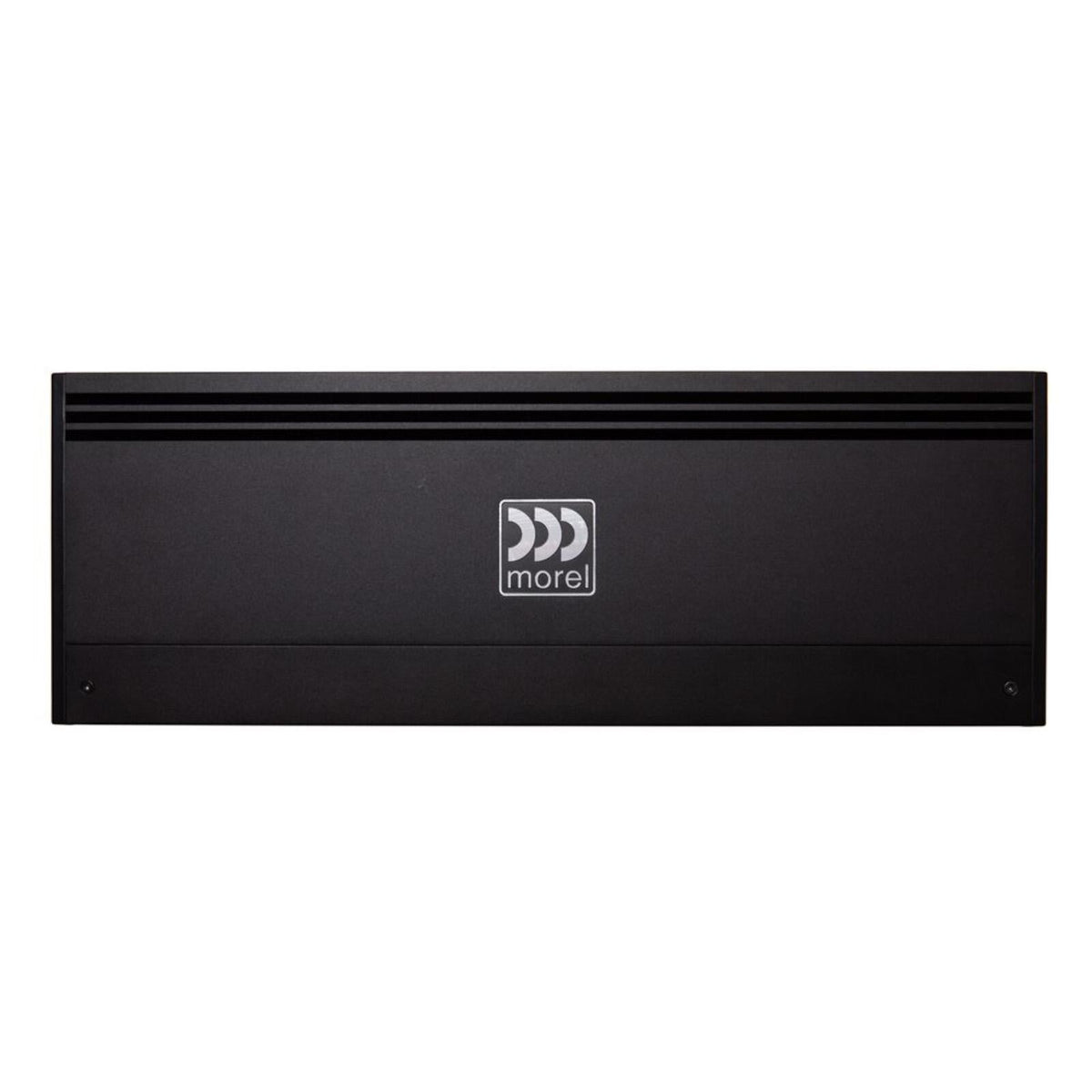

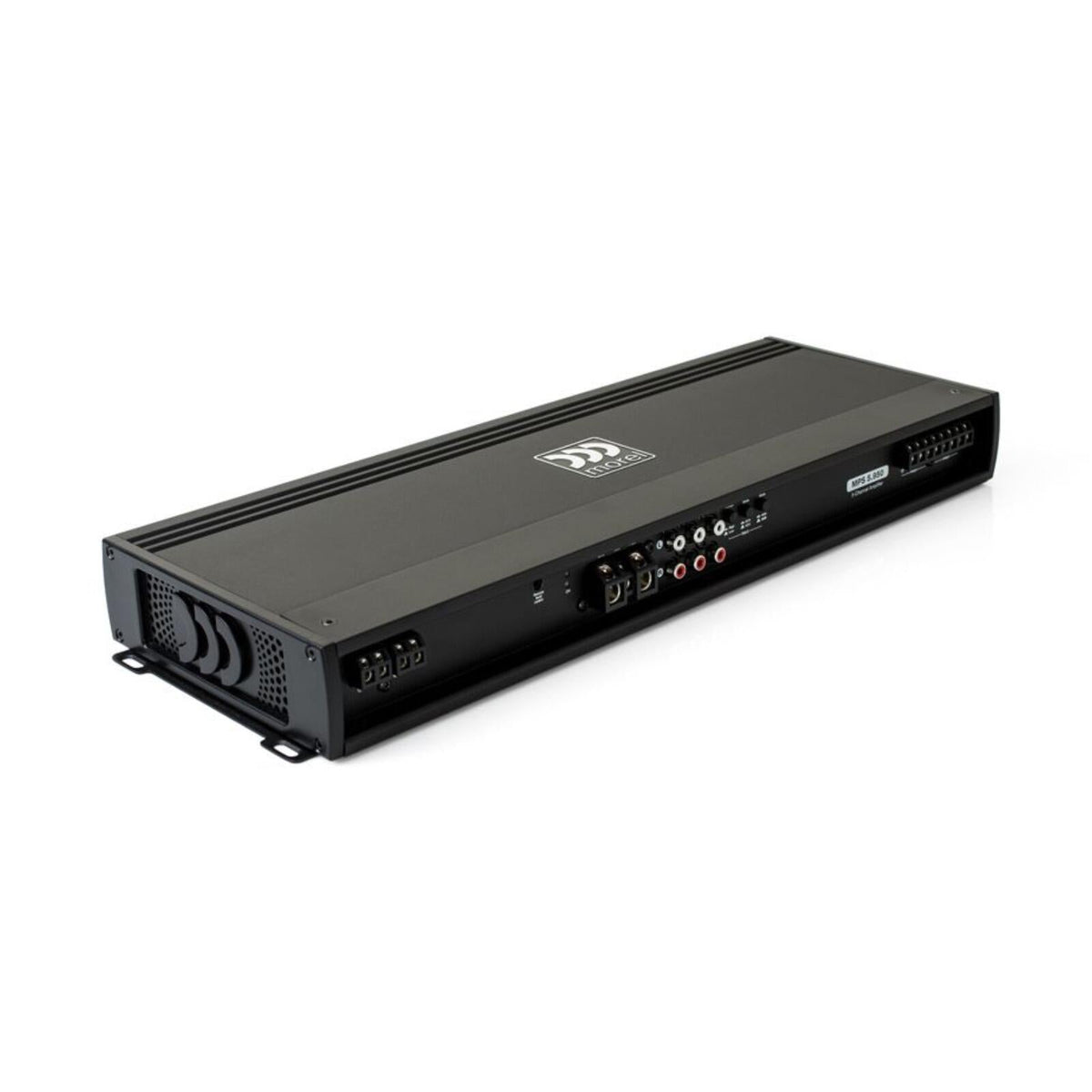

Morel MPS 5.950 Amp 5 Channel Amplifier 4x70w + Mono Sub 1 x 550w RMS at 2ohm

Morel MPS 5.950

5-channel car amplifier — 70 watts RMS x 4 at 4 ohms + 550 watts RMS at 2 ohms

Power station

Morel built this MPS 5.950 amplifier so their high-performing speakers and subwoofers would have an amp worthy enough to power them, delivering high-fidelity musical reproduction along with pure, clean power. The MPS 5.950 can send 70 watts RMS to each of your front and rear speakers plus 550 watts RMS to a sub, powering a full system from its 18-5/16" long chassis. You can also set this amplifier to 3-channel mode and power a couple of high-performance speakers with 200 watts RMS each, while sending a sub 550 watts.

Low-noise design

Morel made sure that every detail of this amplifier's design would result in lower noise and higher sound quality. The front and rear channel's Class AB architecture achieves the cleanest signal with the least distortion. The sub channel's Class D design puts out clean signal with very little noise. Balanced differential inputs reject interference. An onboard microprocessor controls the thermal management system, keeping the amp running cool and steady no matter how hard it's driven. All the connections are on one side of the amp to keep wiring neat, organized, and simple for the installer.

Tone controls for every occasion

The high-pass, low-pass, subsonic filter, bass boost, and gain controls sit protected under a top panel. Their intuitive operations and functions make it easy to match the amp's output to your speakers and sub — and achieve great sound. This amplifier's modest exterior shelters high-quality electronic components that guarantee an accurate and musical performance.

• 5-channel car amplifier
• 70 watts RMS x 4 + 350 watts RMS x 1 at 4 ohms
• 100 watts RMS x 4 + 550 watts RMS x 1 at 2 ohms
• 200 watts RMS x 2 bridged at 4 ohms + 550 watts RMS x 1 at 2 ohms
• Class AB design on front and rear channels, Class D on sub channel
• 100 dB signal-to-noise ratio, 0.05% distortion on front and rear channels, 0.15% distortion on sub channel
• variable high- and low-pass filters (40-400 Hz, 12 dB/octave) on front and rear channels
• variable low-pass filter (40-220 Hz, 12 dB/octave) on sub channel
• variable bass boost (0-12 dB at 45 Hz) on sub channel
• switchable subsonic filter (off, 25, 35 Hz) on sub channel
• Other Features:
• preamp and speaker-level inputs
• speaker-level inputs require speaker wire to RCA adapters
• speaker-level inputs feature DC offset or signal sensing turn-on
• optional MPS-R1 wired remote bass level control available soon
• wiring, fuse, and hardware not included with amplifier
• 4-gauge power and ground wires and an 80-amp fuse recommended
• 19-1/4"W (including flange) x 2-1/8"H x 6-3/4"D
