JL Audio HD1200/1 HD Series 1 Channel Monoblock Subwoofer Amplifier 1200w RMS

HD1200/1

Monoblock Class D Wide-Range Amplifier, 1200 W

Monoblock Class D Wide-Range Amplifier, 1200 W x 1 @ 1.5-4 Ω

Our most powerful HD amplifier employs our advanced Single-Cycle Control switching design and R.I.P.S. technology to deliver 1200 W of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

While targeted primarily to subwoofer applications, the HD1200/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems.

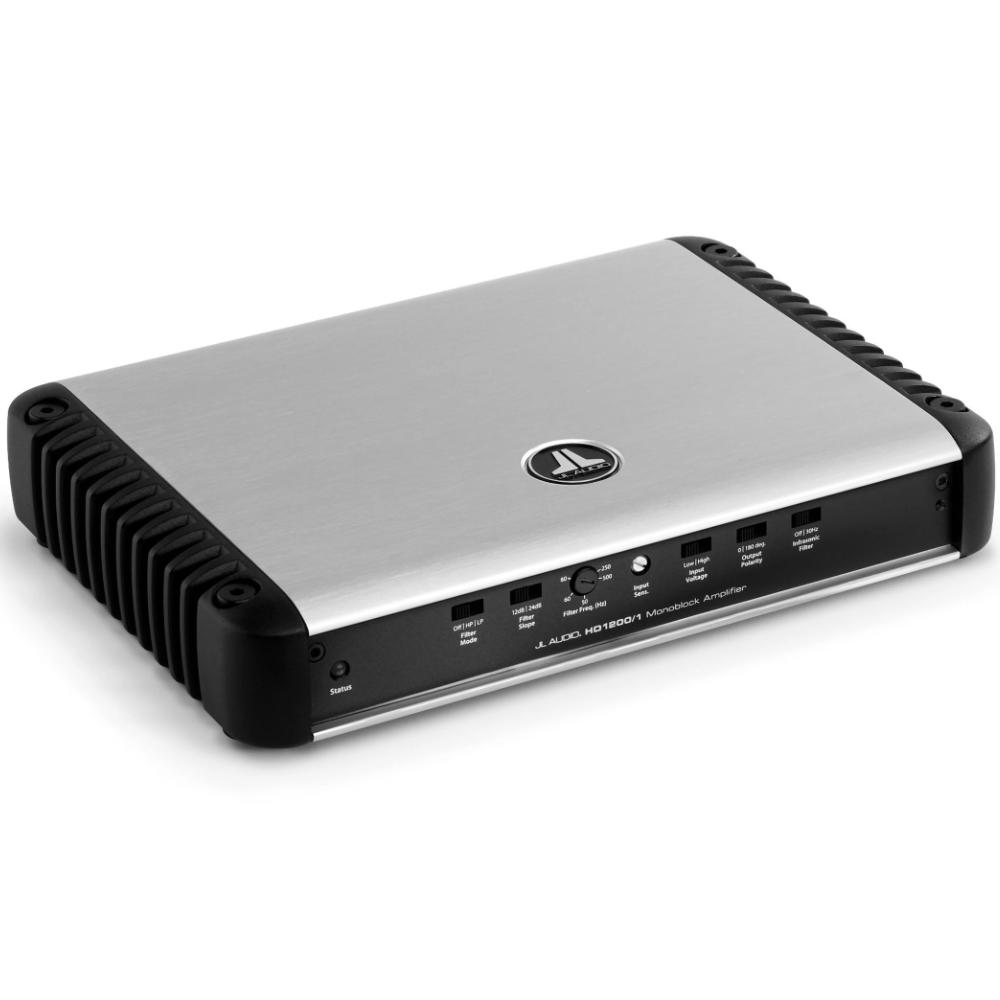

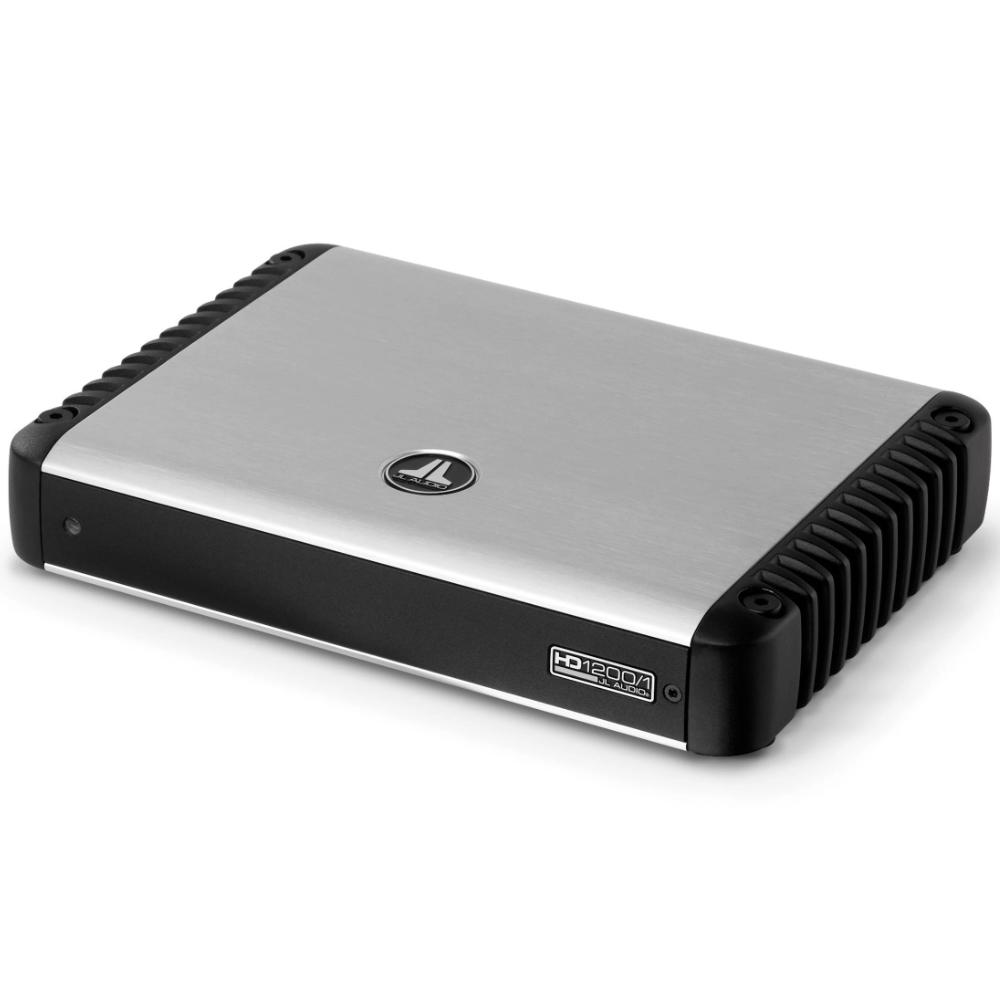

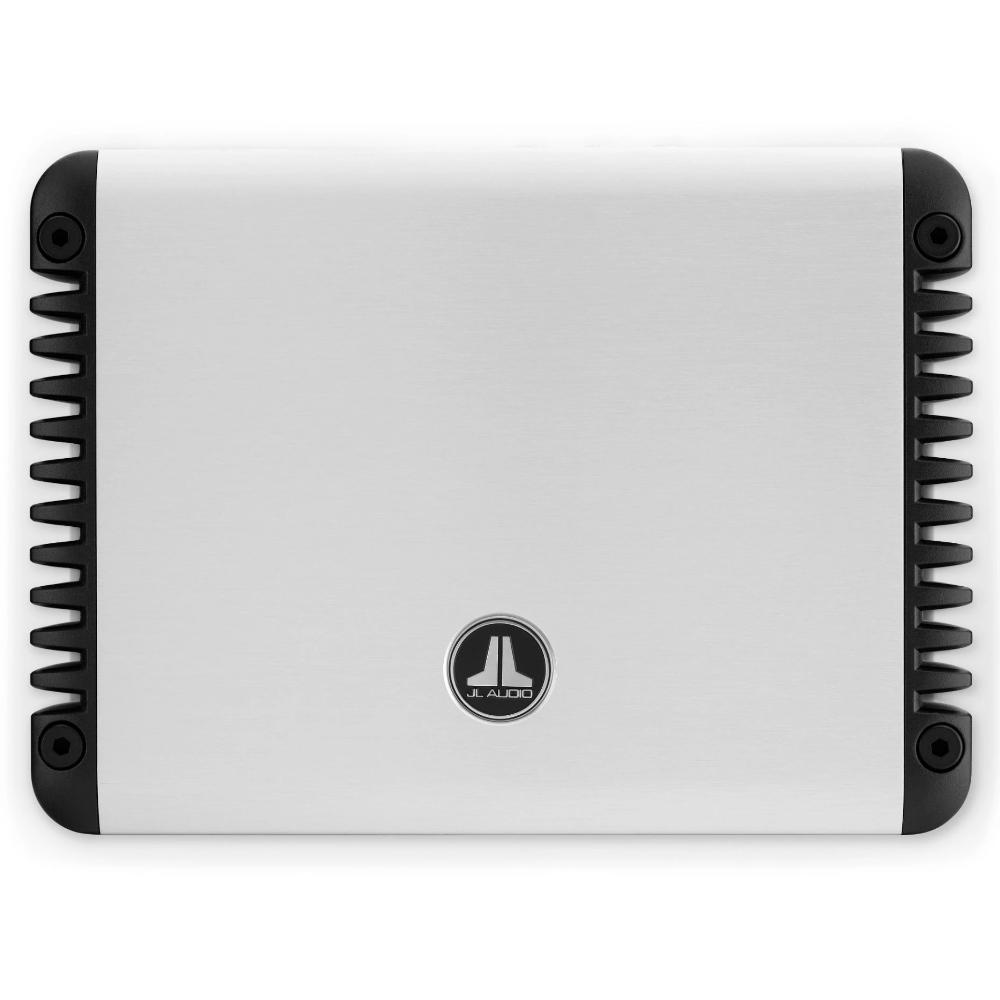

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

R.I.P.S. – Regulated, Intelligent Power Supply

The remarkable R.I.P.S. System ensures consistent power delivery over a wide range of battery voltages and load impedances.

R.I.P.S. stands for "Regulated, Intelligent Power Supply" and is a central feature of JL Audio's 'Slash' and HD amplifiers.

"Regulated" means that the power supply adjusts its operation so as to maintain the amplifier's rated power output and low distortion operation over a wide range of vehicle voltages (11V-14.5 V). This contrasts with conventional, "unregulated" power supplies, which allow rail voltages to sag in direct proportion to drops in the supply voltage. This can result in significant power losses when battery voltage decreases, even if those voltage dips are short in duration. This manifests itself audibly as increased distortion. With a JL Audio R.I.P.S.-equipped amplifier, the rail voltage and clean power output remain completely stable in real-world systems, resulting in superior fidelity and stability

The "Intelligent" portion of the R.I.P.S. System is a circuit that actually monitors output current to optimize the amplifier's output power over a wide range of load impedances (1.5 ohm to 4 ohm per channel).

Conventional amplifiers are designed to produce optimum power at a particular impedance (2 ohms, for example). When asked to run above that impedance (say, 4 ohms), these amplifiers lose power (half their power from 2 ohms to 4 ohms). This will not happen with a JL Audio HD or 'Slash' amplifier because the R.I.P.S. System detects the actual impedance being driven and adjusts the amplifier's operation to deliver optimum output. The entire process is seamless, automatic, and results in incredible dynamics for satellite channels and consistent power output for a wide range of subwoofer configurations. It also takes into account the real impedance of the system, rather than relying on often inaccurate assumptions based on a speaker's rated impedance.

The bottom line: Optimum power, at any impedance between 1.5 ohm and 4 ohm per channel, at any vehicle voltage between 11V and 14.5V.

Advanced Rollback Protection

JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events.

Should a JL Audio amplifier equipped with Advanced Rollback Protection reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The condition is generally indicated by a red “Thermal” or “Status” LED state. On VXI amplifiers, the LED ring will flash red. Once the amplifier cools down, the circuit restores full peak power output and the indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases, but it ensures that your music keeps on playing, even under the most demanding conditions.
