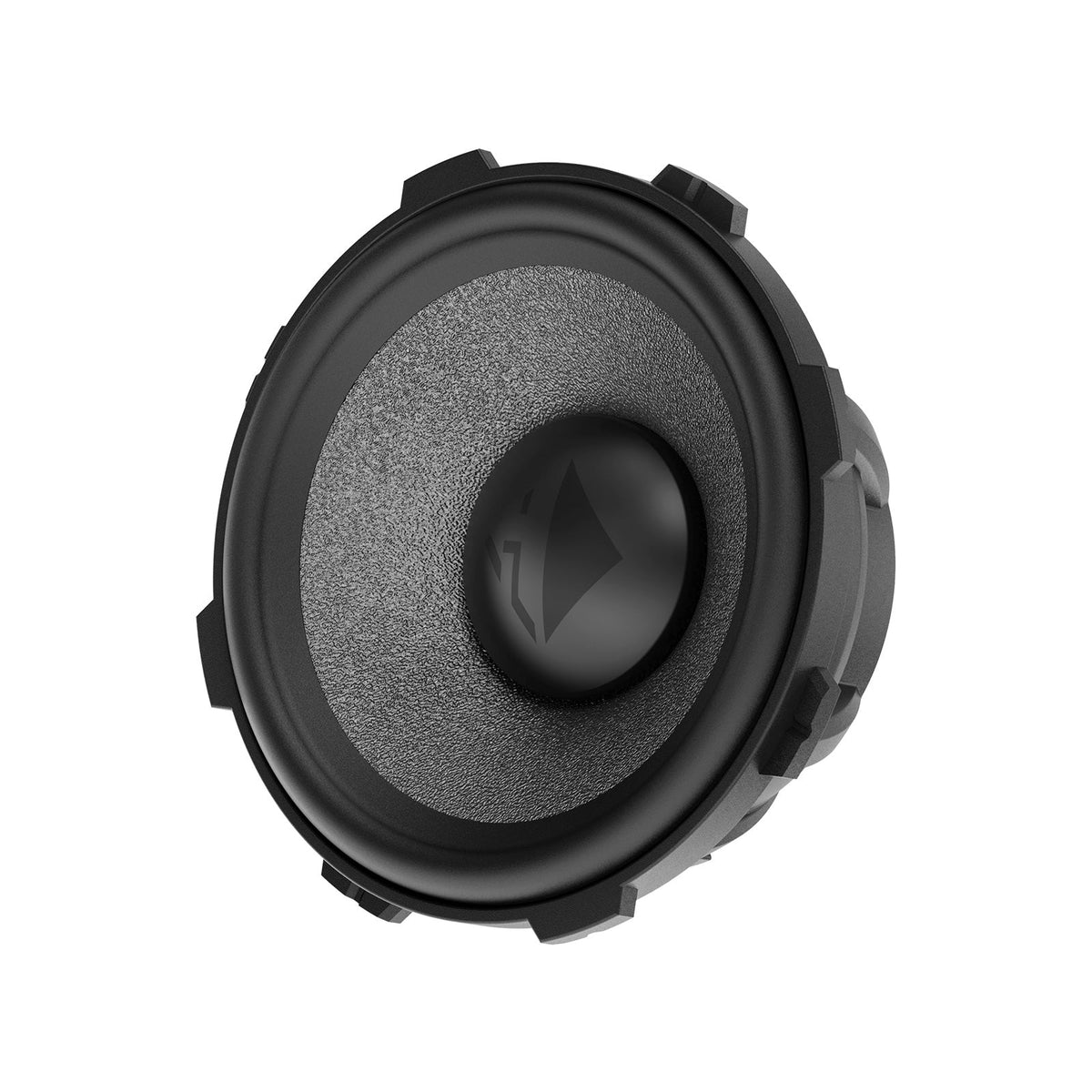

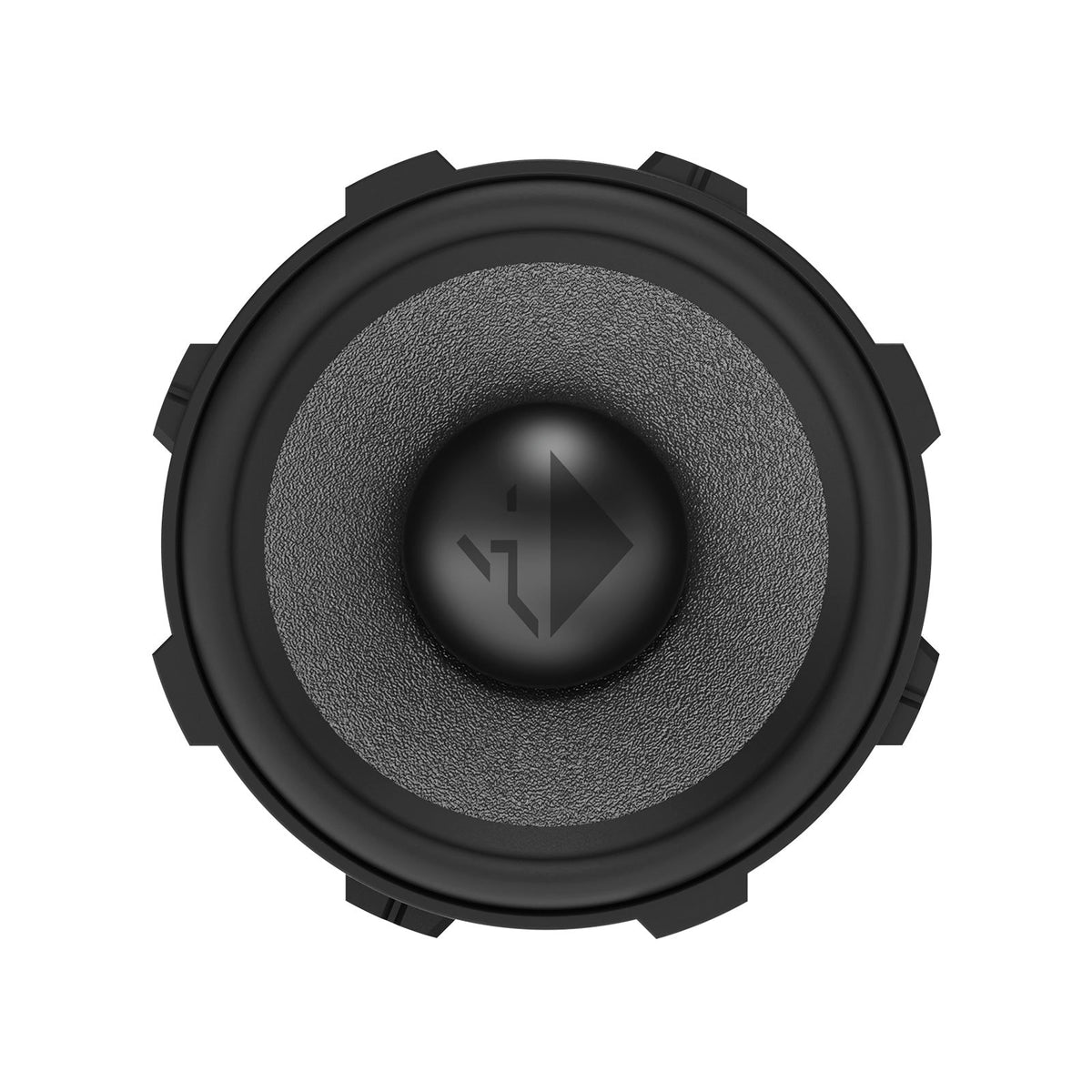

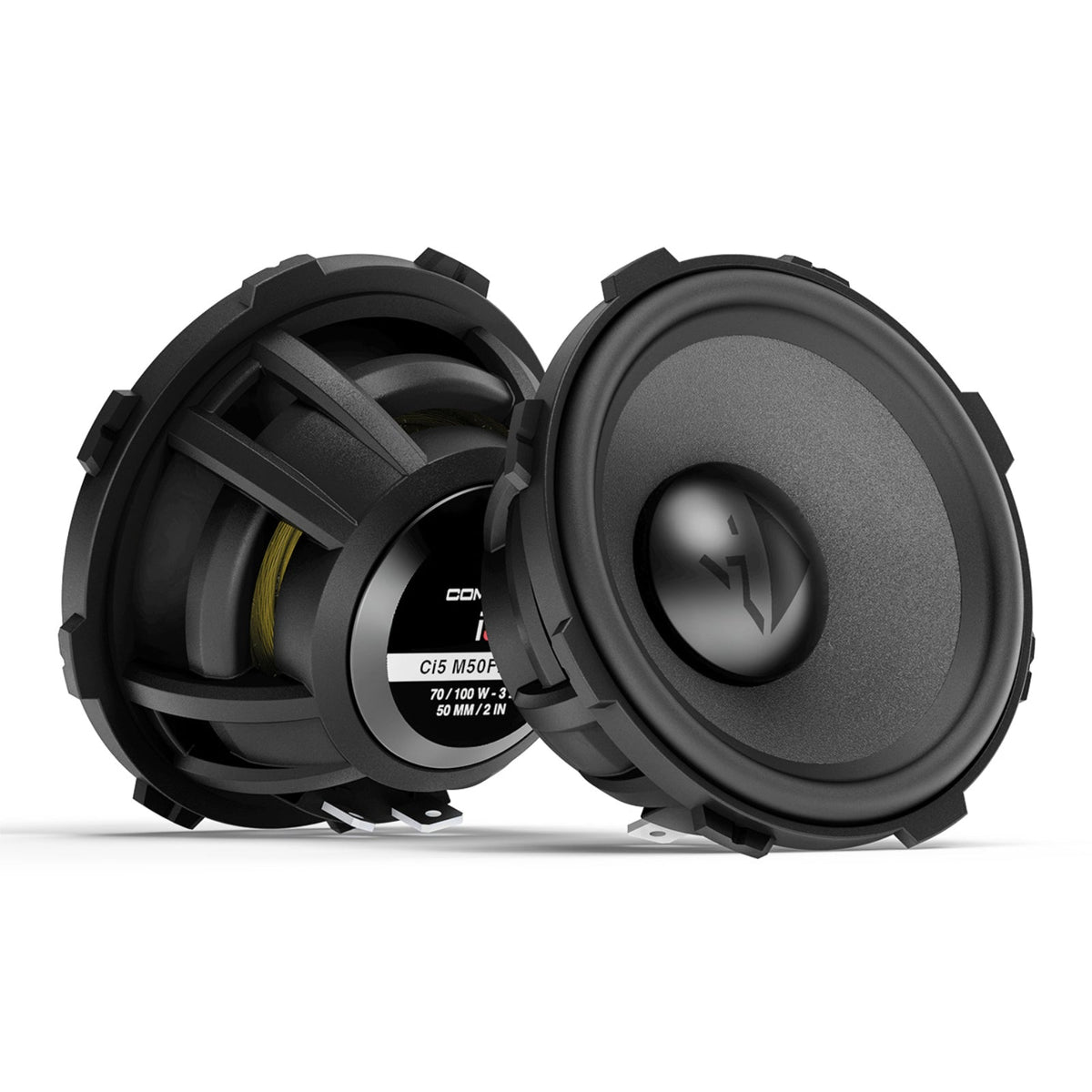

Helix Compose i5 Ci5 M50FM-S3 Wideband Speakers 2 Inch 50 mm FlexMount 70w RMS

HELIX Ci5 M50FM-S3

HELIX COMPOSE. The perfect speaker for any composition. 

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering – the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.

• 2” / 50 mm advanced wideband speaker with exceptional sound performance and versatile physical integration options

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

• Silicon coated paper cone for excellent impulse response and unmatched frequency response

• Maximized cone area and an aluminum dust-cap directly coupled to the voice coil, achieving a wide frequency response of 300 – 20,000 Hz

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Special rubber surround and optimized magnet system for large linear cone excursion

• Dedicated surround manufacturing allows for a smaller installation diameter and a maximized effective cone area compared to typical 50 mm speakers

• Powerful push-pull neodymium magnet system for highest efficiency and extremely low distortion

• Universal FlexMount50 mounting ring for car-specific adaption (e.g. Audi, Ford, Mercedes etc.) or universal use included in delivery

• Universal mounting ring with grille included in delivery

The Sound Sensation for sophisticated music lovers 

The HELIX COMPOSE i5 series is the link between i7 and i3, created for sophisticated music lovers with a sparked ambition for a true hi-fi experience. A lovechild of phenomenal sound and unmatched practicality: Developed with the vision of unique speaker highlights that are also true problem solvers. All speaker impedances are perfectly matched for the combination with our HELIX and MATCH amplifiers, guaranteeing maximum performance at any time. In addition, we implemented our COMPOSE-exclusive mechanical technologies that offer unbeatable practical benefits. 

High efficiency

HELIX COMPOSE equals smart engineering and accordingly implements highly efficient 3 Ohm technology, that perfectly harmonizes with all HELIX and MATCH amplifiers and at the same time allows a clearly perceptible plus in efficiency and maximum sound pressure.

High-tech polymer basket

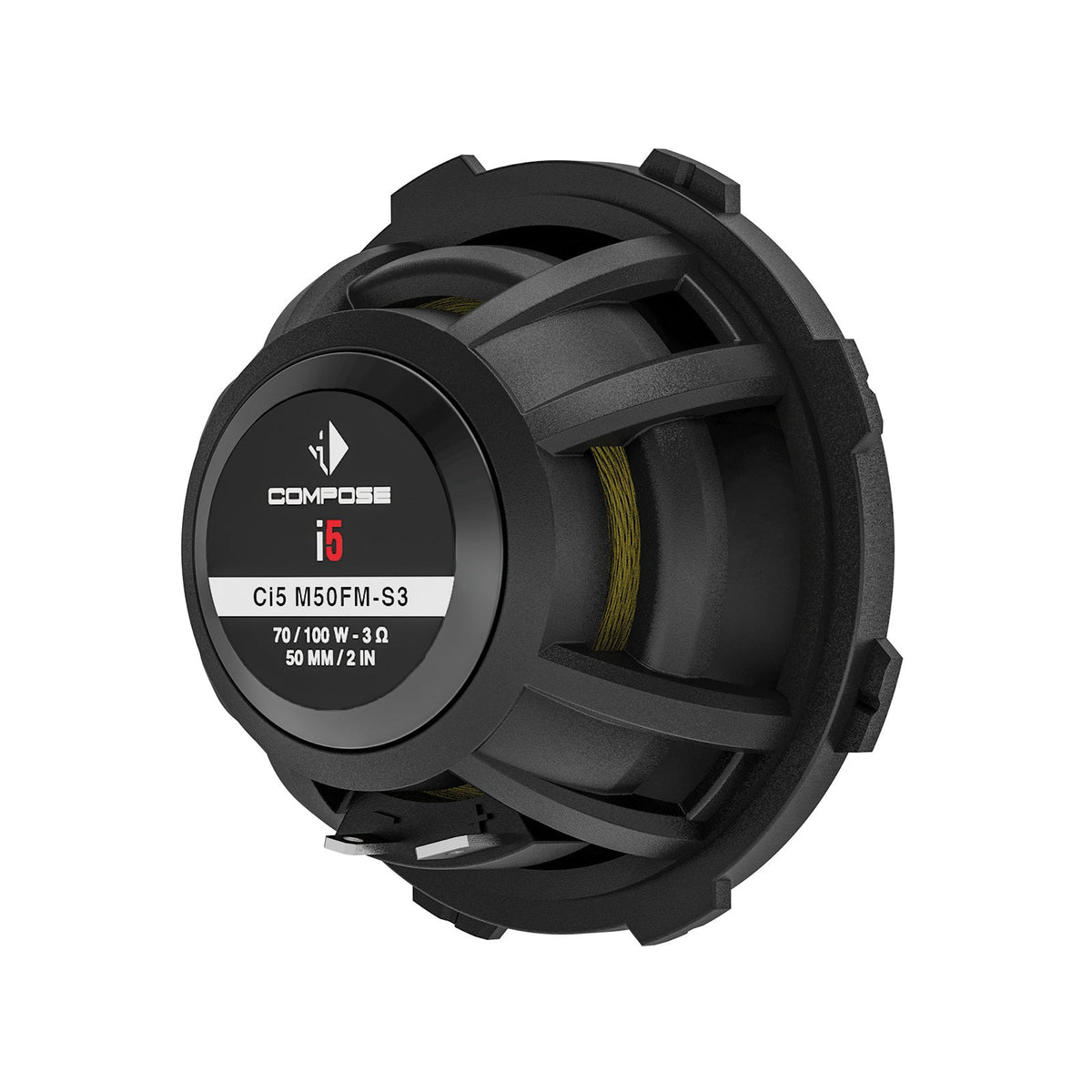

The Ci5 M50FM-S3 speaker basket is made of a high-tech polymer composite, which has been additionally reinforced with glass spheres. The result: maximum stability with minimal self-resonance, while also eliminating flux modulation of the magnetic system and maximum resistance to thermal influences. Last but not least, this allows for much more compact basket dimensions and thus simplified installations in cramped installation conditions.

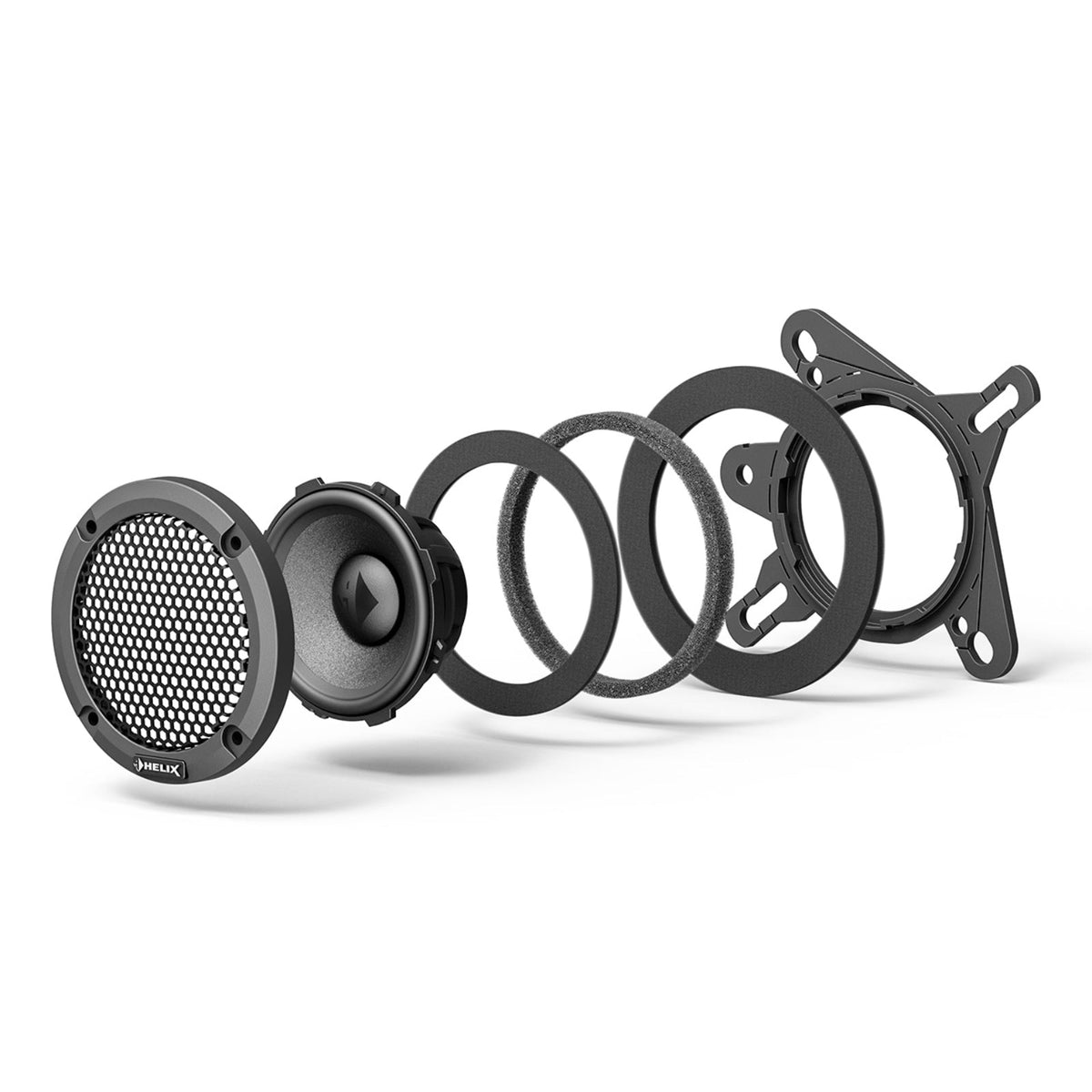

FlexMount50 – Universal meets car-specific

FlexMount is a mounting system based on specially developed adaptor rings, allowing the installation of COMPOSE FlexMount speakers in an almost infinite number of vehicles. Thus, the universal loudspeaker effortlessly becomes a vehicle-specific loudspeaker, that can be easily installed in the original installation position of the vehicle in an acoustically optimized way with the matching FlexMount adaptor ring.
