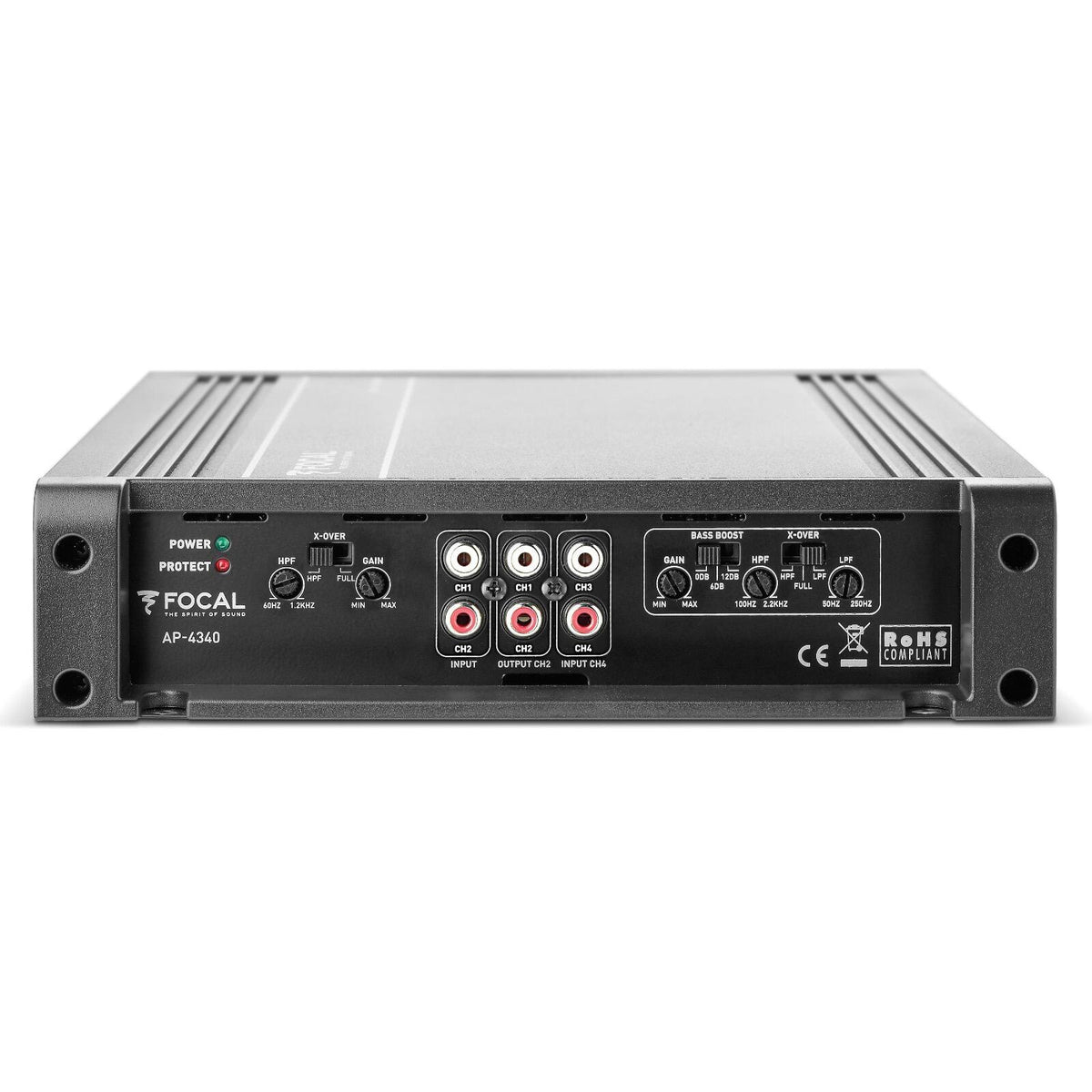

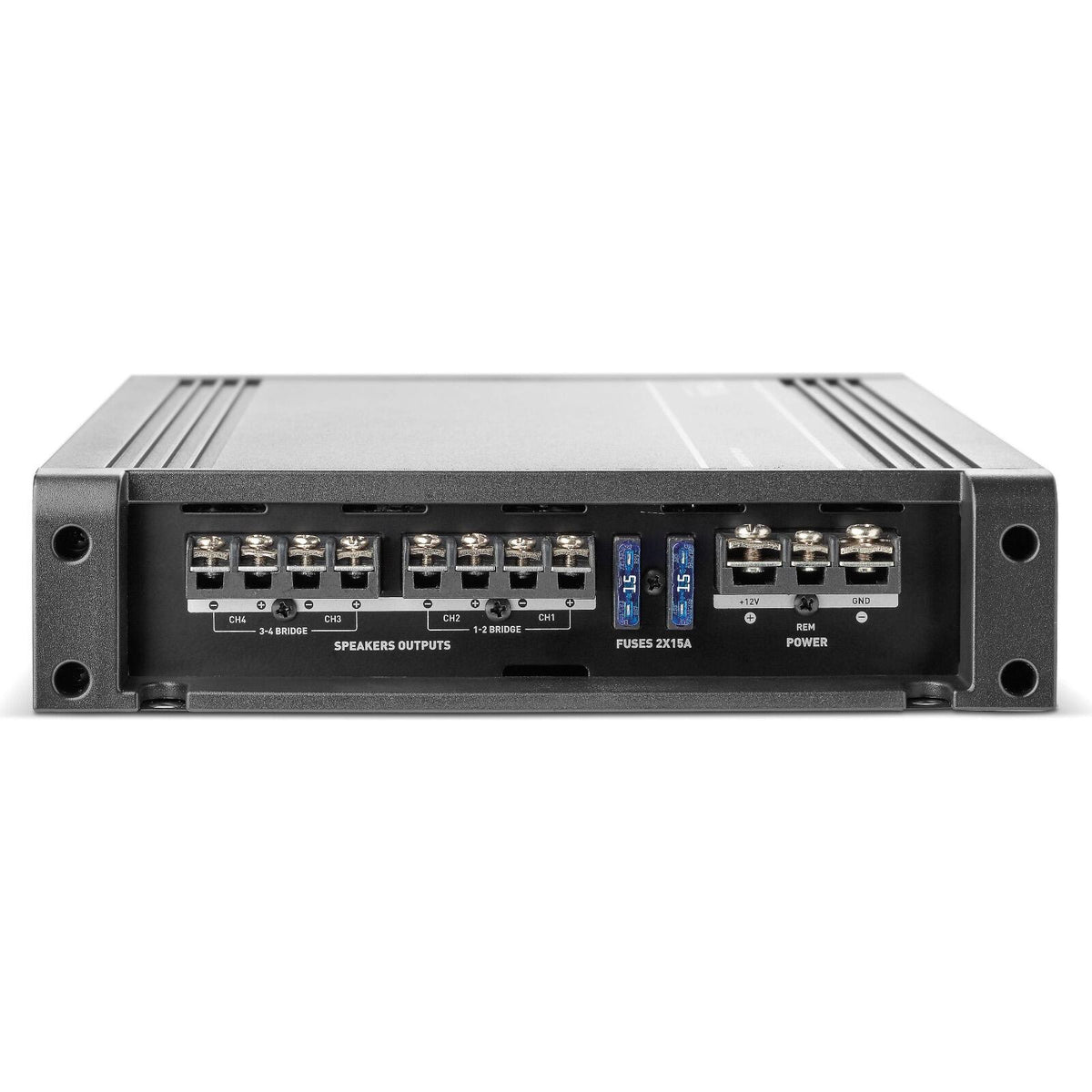

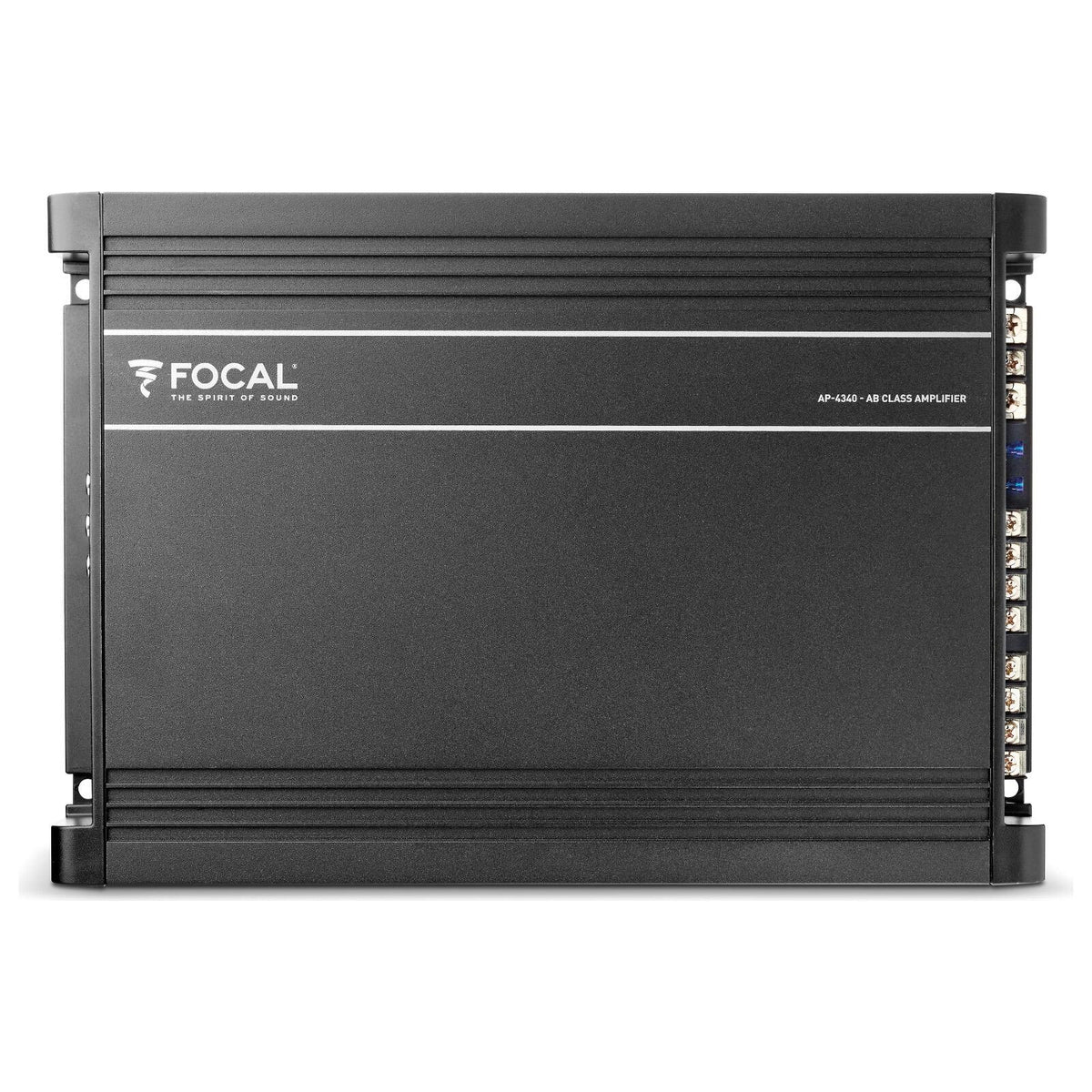

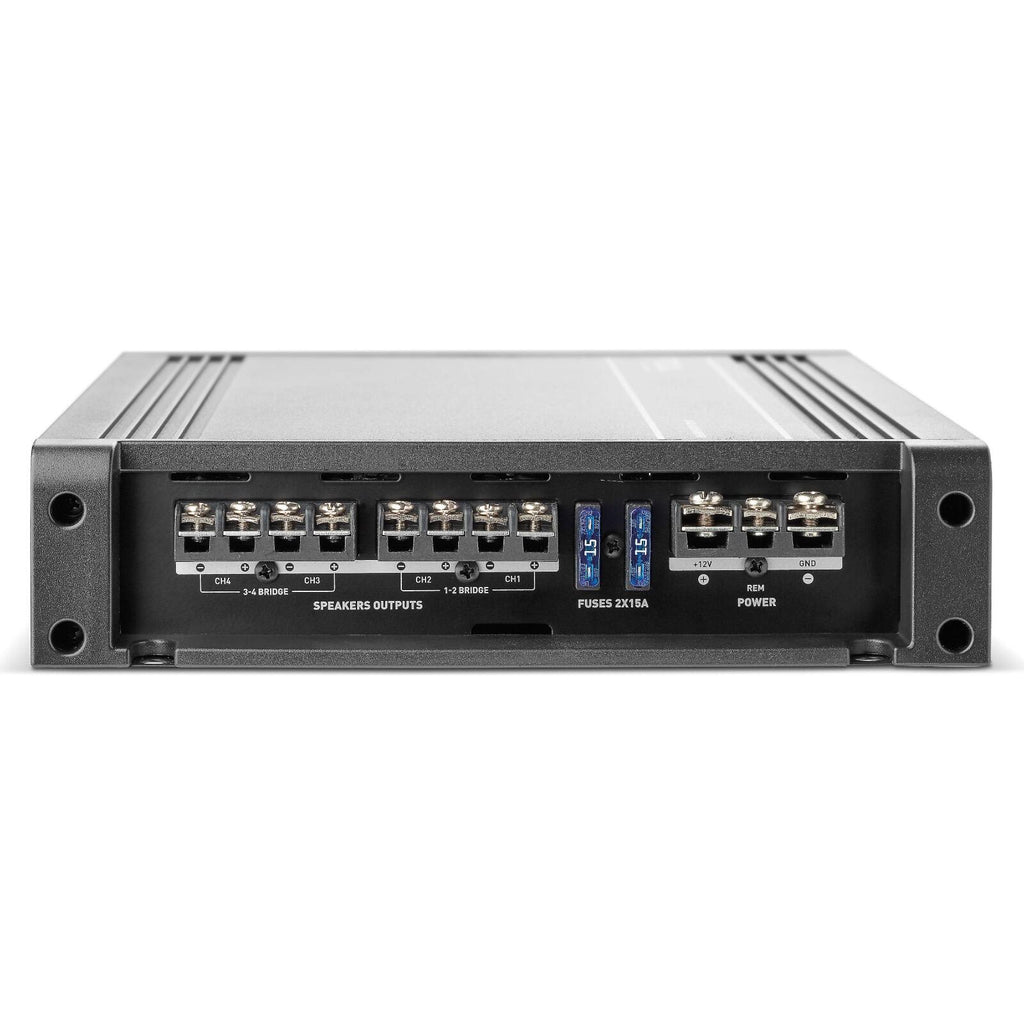

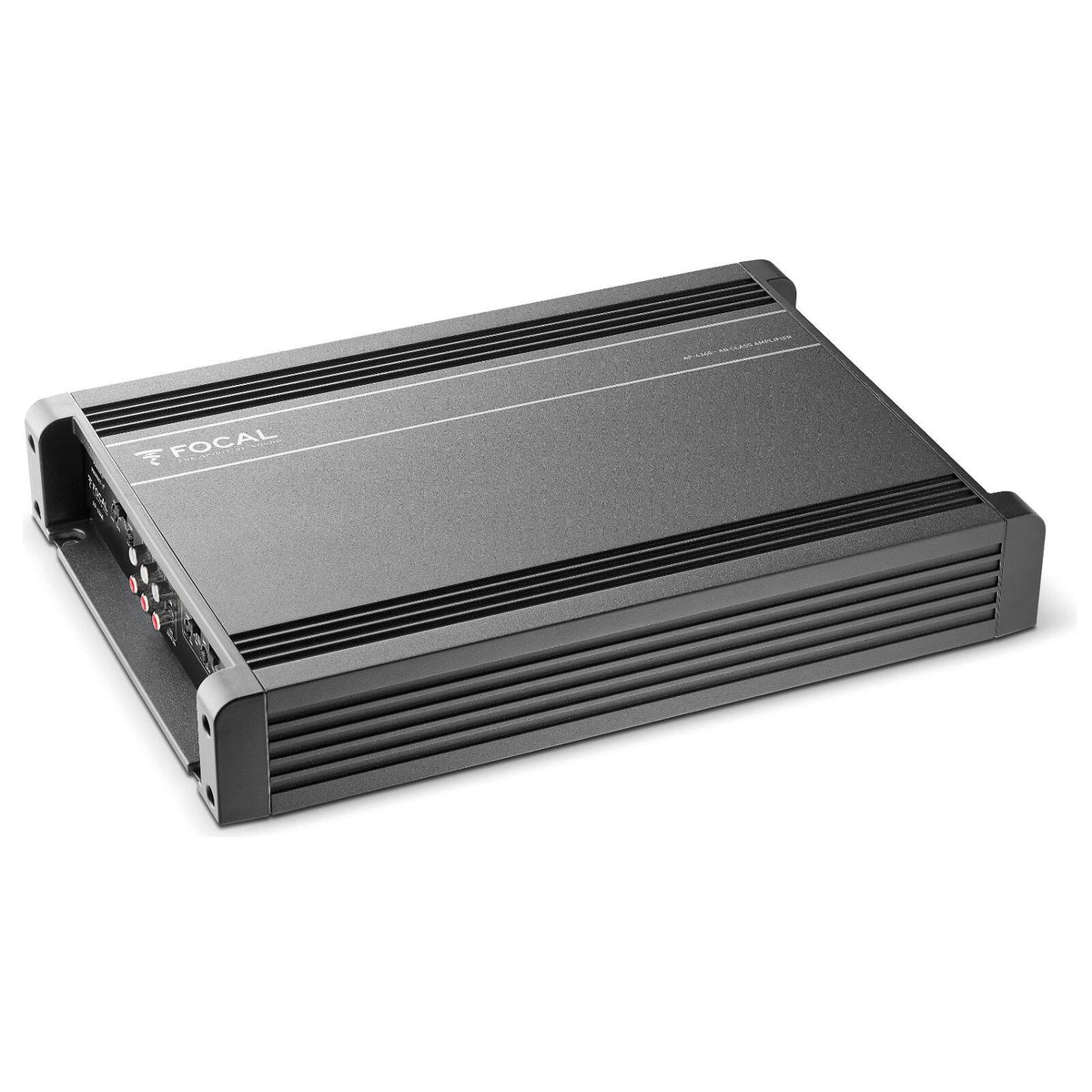

Focal AP 4340 Auditor Series 4 Channel Amp Class A B Car Amplifier 4 x 70w RMS

Focal Auditor AP 4340

4/3/2-CHANNEL A/B CLASS AMPLIFIER

High-fidelity Class AB amp

Whether you're talking about audio products for home, car, or studio, the name Focal always comes up when the conversation centers around sound quality. Their Auditor Series AP 4340 4-channel amp makes a great candidate for powering any high-performance car audio system. This amp puts out 70 watts RMS per channel with very low distortion and very wide frequency response, so you can be sure your speakers or subs will sound their best.

• 4-channel car amplifier
• 70 watts RMS x 4 at 4 ohms (95 watts RMS x 4 at 2 ohms)
• 190 watts RMS x 2 at 4 ohms (bridged mode)
• CEA-2006 compliant
• Class AB amp technology
• channel 1-2: variable high-pass filter (60-1200 Hz)
• channel 3-4: high-pass filter (100-2200 Hz) or low-pass filter (50-250 Hz)
• channel 3-4: selectable bass boost (0, 6, 12 dB at 45 Hz)
• preamp inputs and outputs
• 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
• total harmonic distortion: 0.06%
• frequency response: 10-30,000 Hz

4-, 3-, or 2-channel operation

When you're using the AP 4340 to power four speakers, you can use the high-pass filters on the front and rear channels to eliminate the low bass for a cleaner sound. If you want to run full-range speakers and a sub, you'd use the high-pass filters on your front channels, then bridge the rear channels together to drive your sub, using the low-pass filter to optimize the bass.

In 2-channel mode, the AP 4340 puts out 190 watts RMS per channel, so you could use it to power a pair of high-performance speakers or subwoofers. A selectable bass boost lets you extend the low-frequency response.
