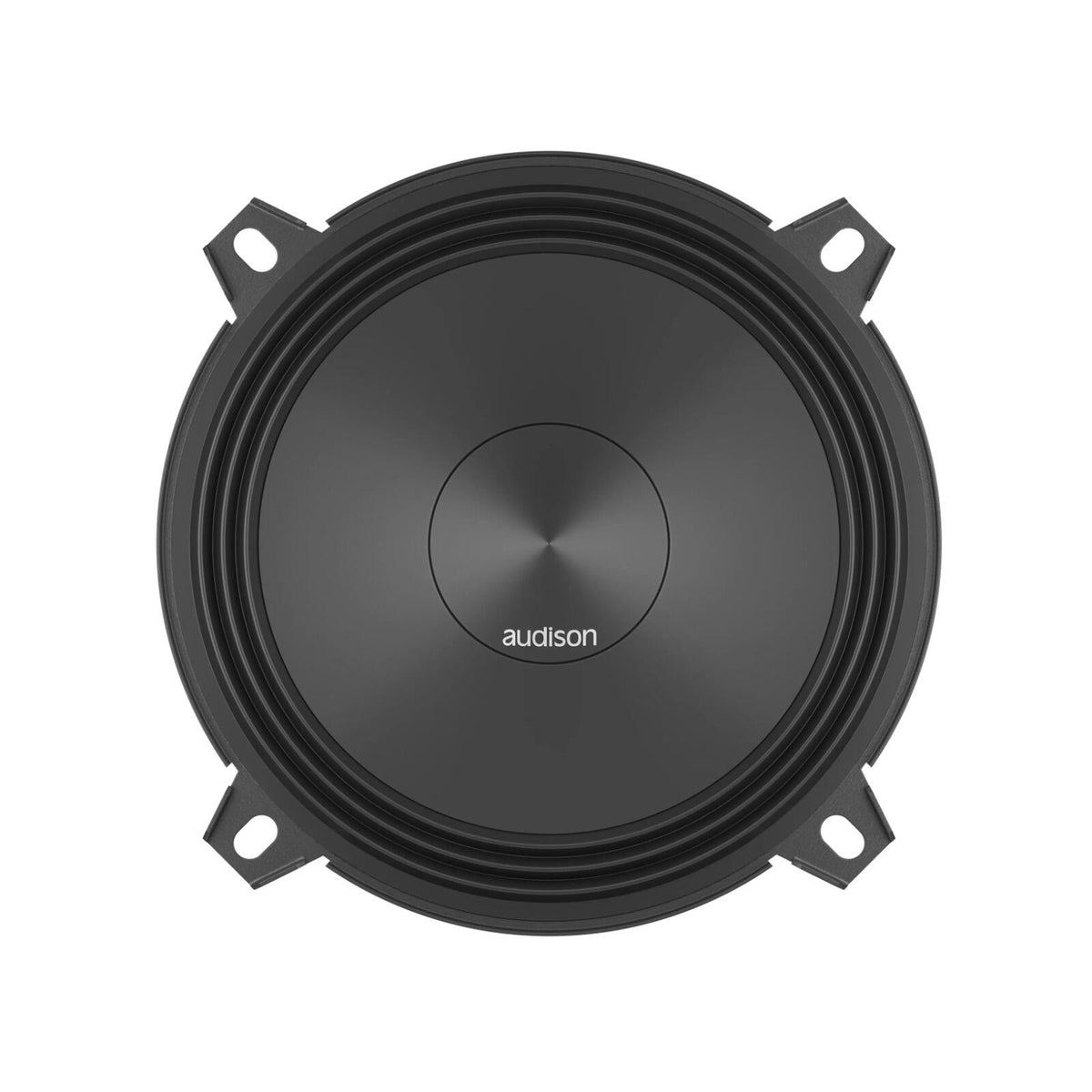

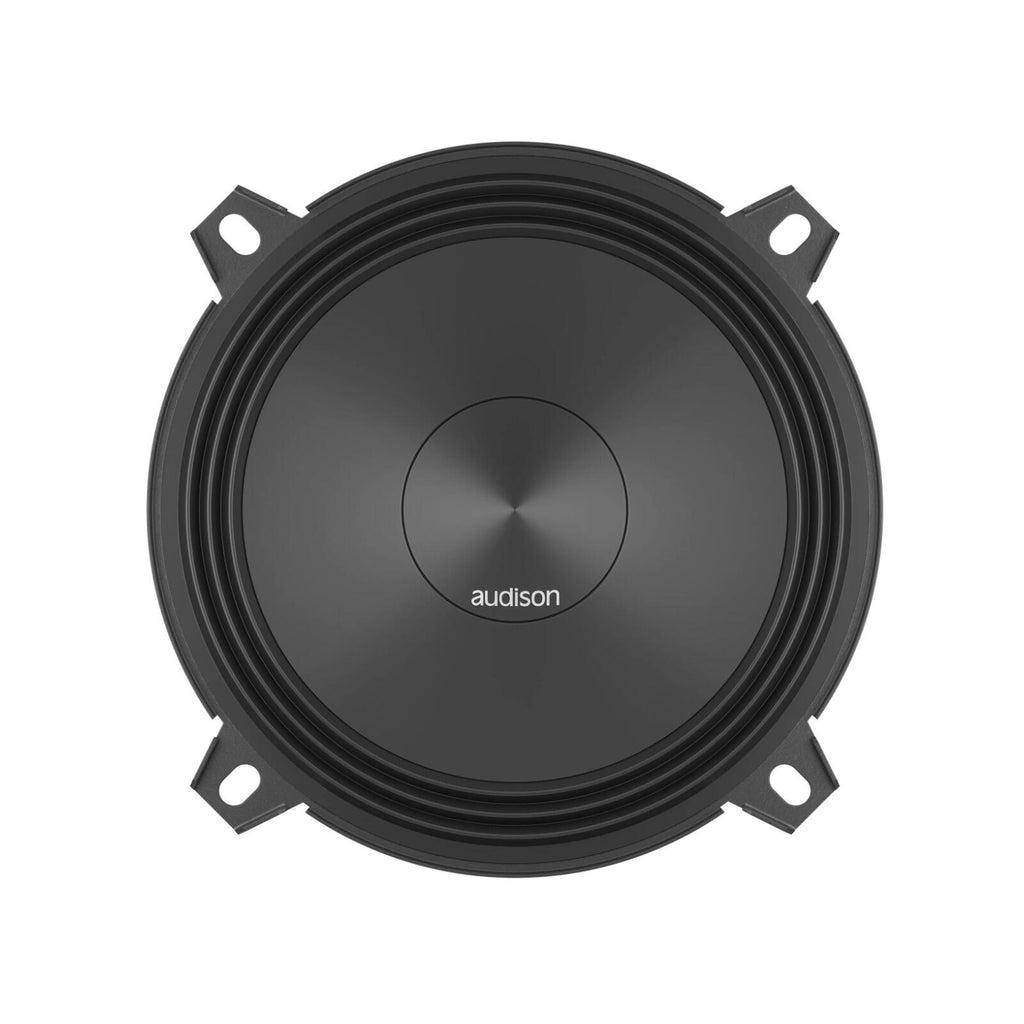

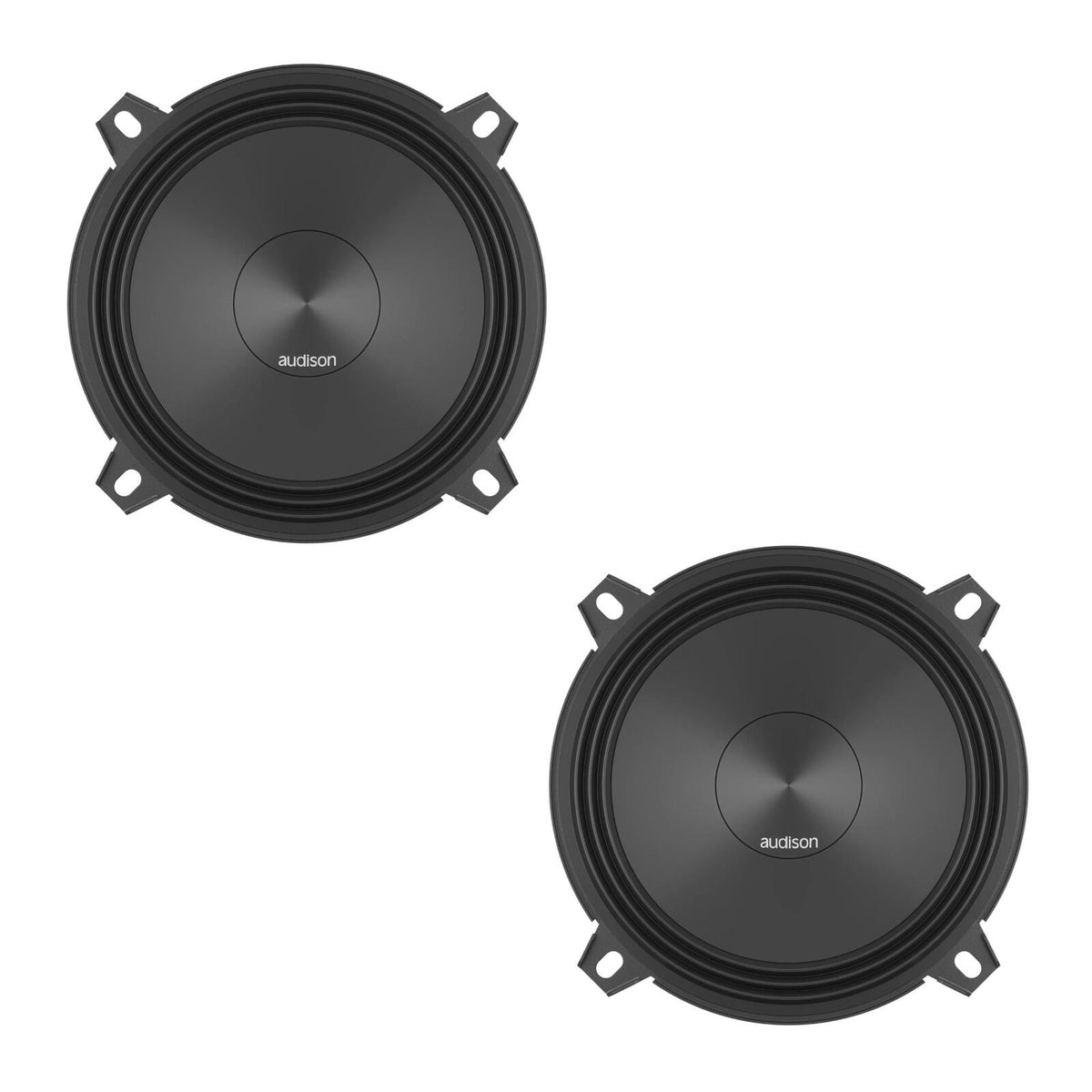

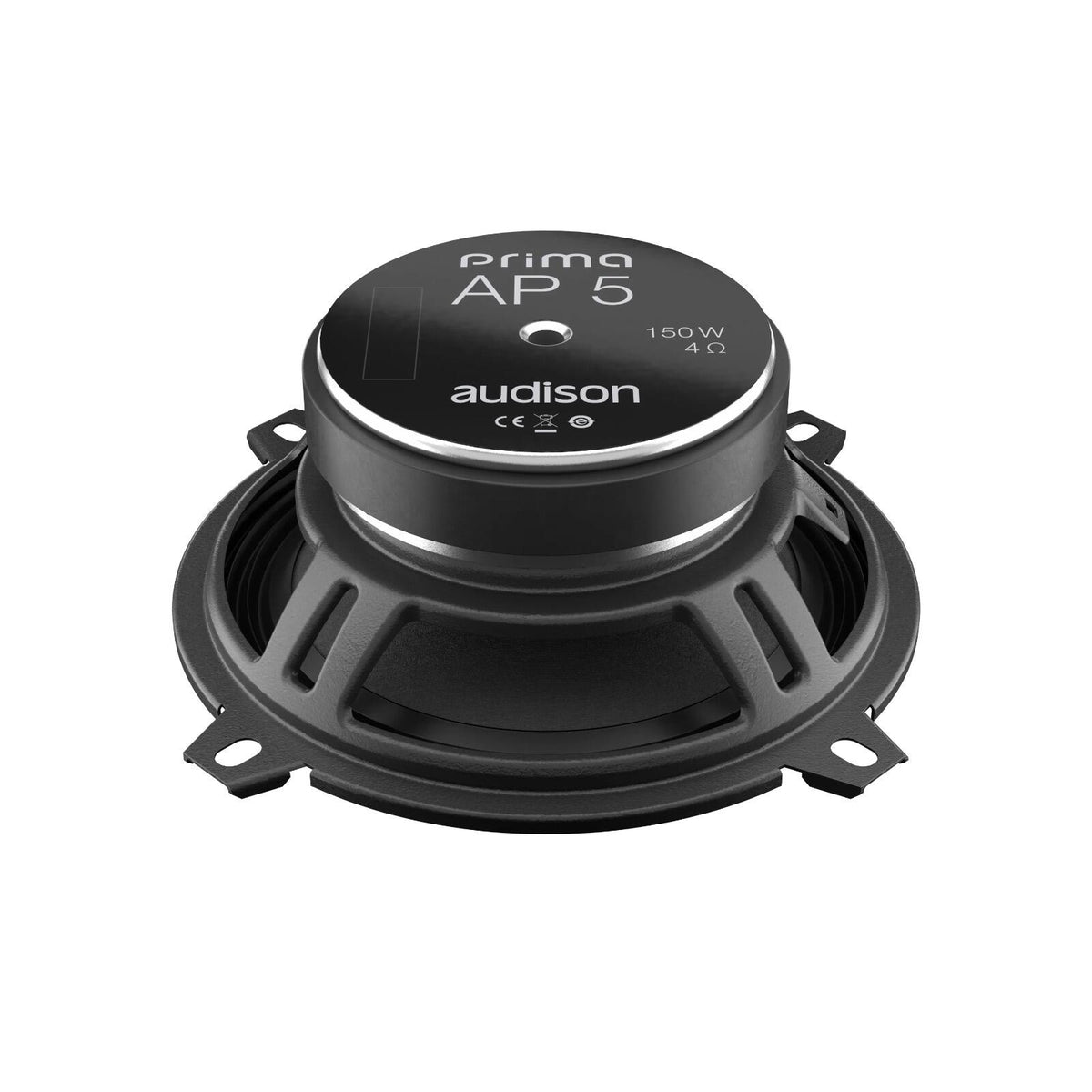

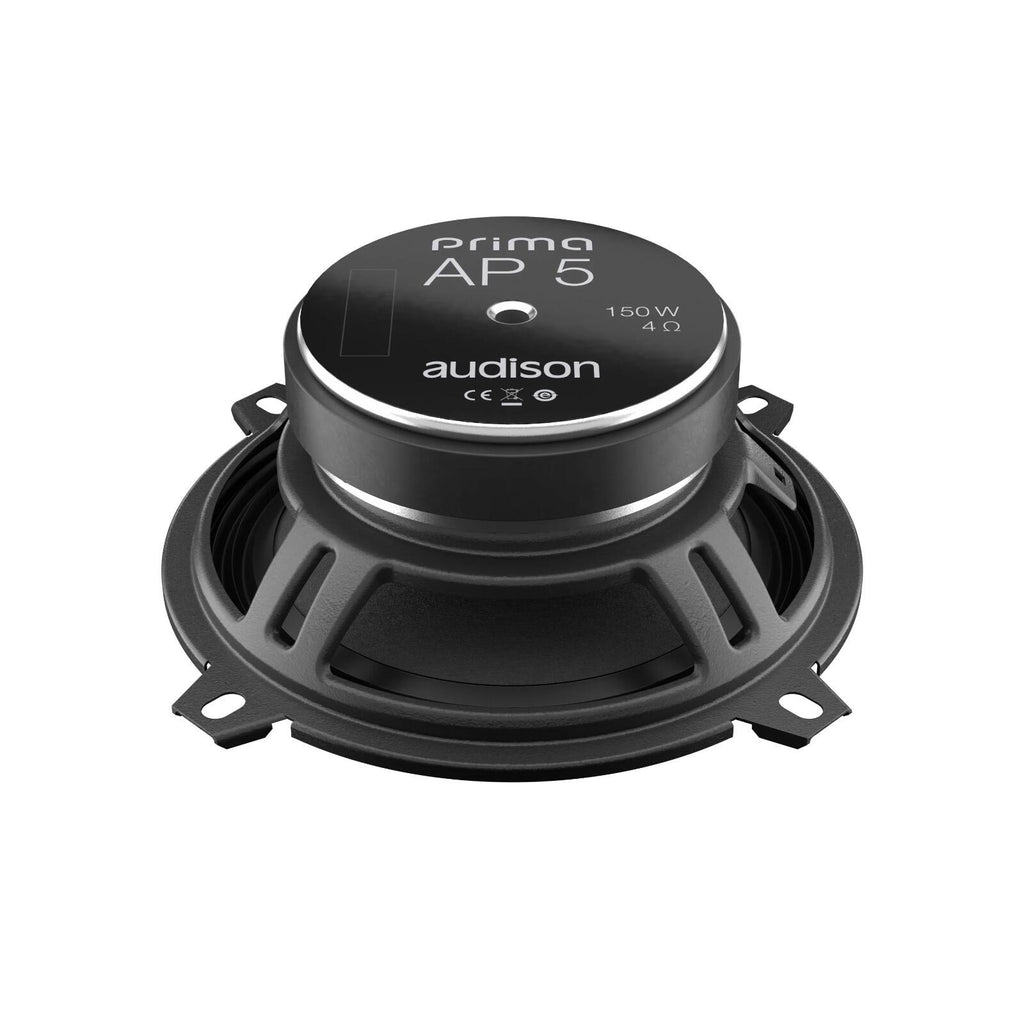

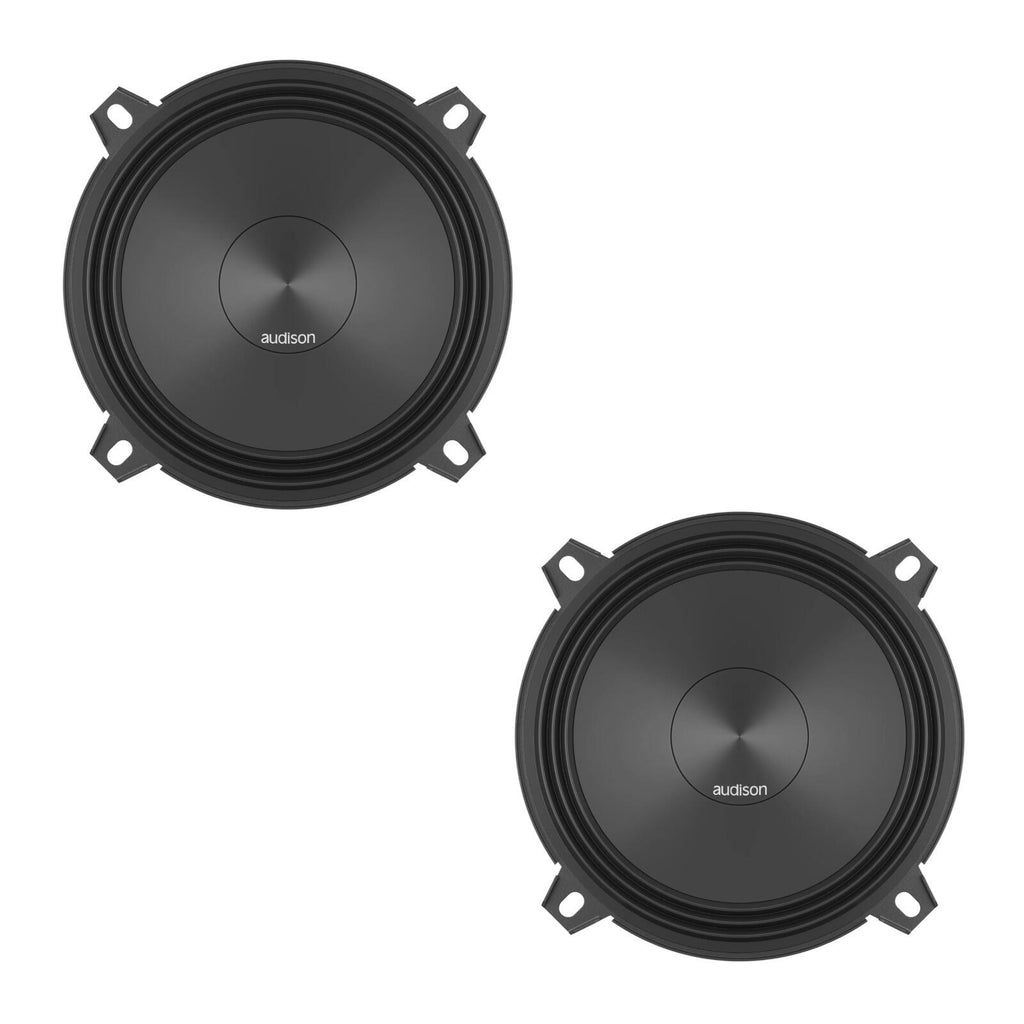

Audison Prima AP 5 5" 13cm 130mm Car Midrange Dash Door Speakers 50w RMS Pair

Prima AP 5

Woofer | 150 W Peak Power | 130 mm | 4 ohm

Audison Prima

Audison Prima was designed to meet the interest of the car model enthusiasts who like to appreciate all the nuances of the musical message with components that are perfectly integrated in the car OEM system, preserving the most precious Prima on Audison requirement of OEM integration: space.

AP 5 features a 32 mm pure copper voice coil, for high power handling and outstanding low-frequency control. All the woofers don't employ any filter, to maximize efficiency: the dome profile has been optimized with Klippel Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.

• 32 mm pure copper mobile voice coil, for high power handling and outstanding low-frequency control.
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
• No passive crossover is required to maximize efficiency: the cone is optimized with the Klippel Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
• Reduced mounting depth, providing ease of installation in OEM placements.
• TPU (thermoplastic polyurethane) sphere with unique “triple wave” profile for maximum linearity of excursion.
• Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor is affixed with damping epoxy adhesive.
• High current fast-on terminal with double contact on positive and negative poles for installation flexibility and quick connection.
• The terminal features a temperature-resistant plastic cover, protecting it against accidental short circuits.
• Developed with the KLIPPEL suite.

The surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.
